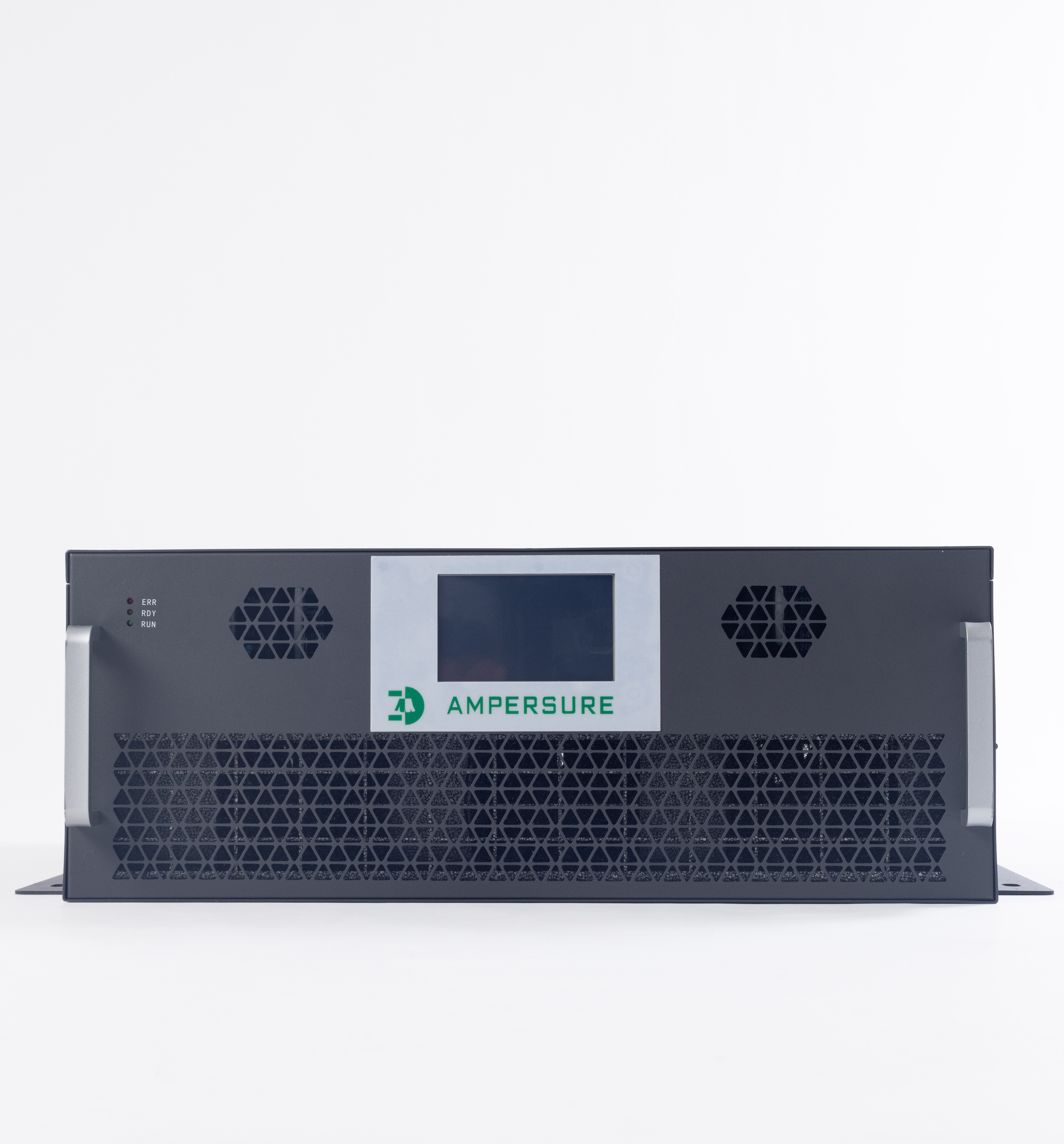

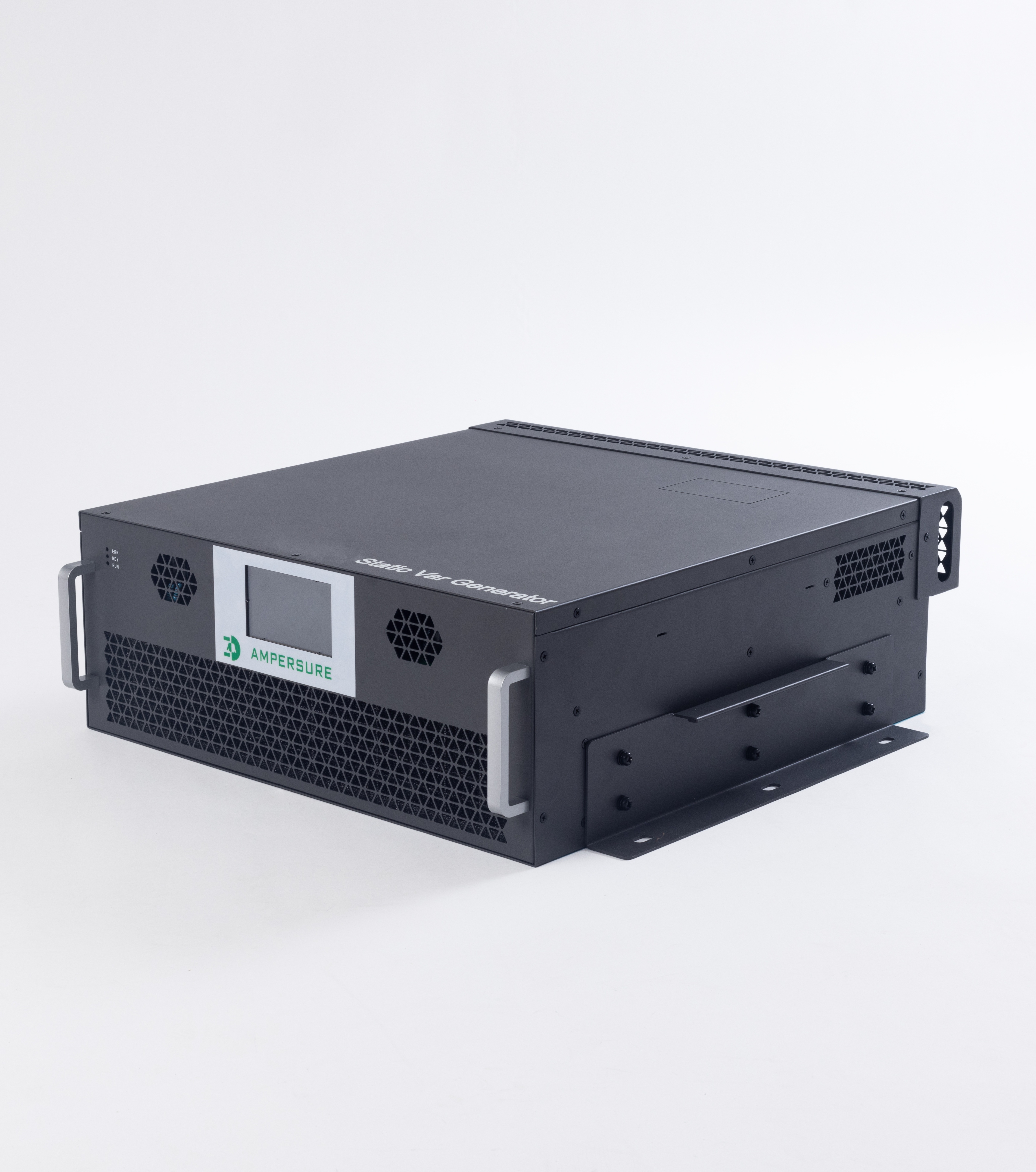

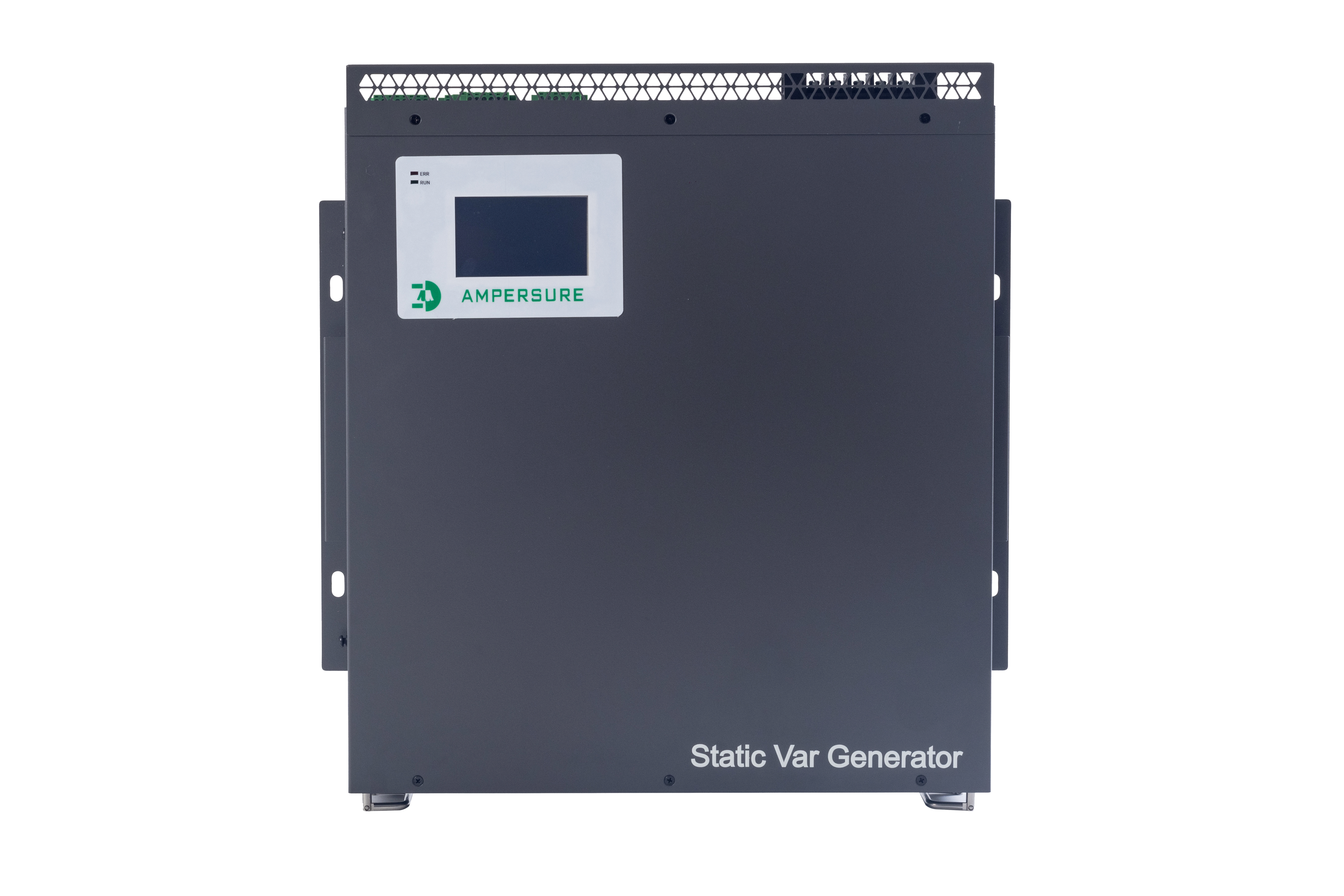

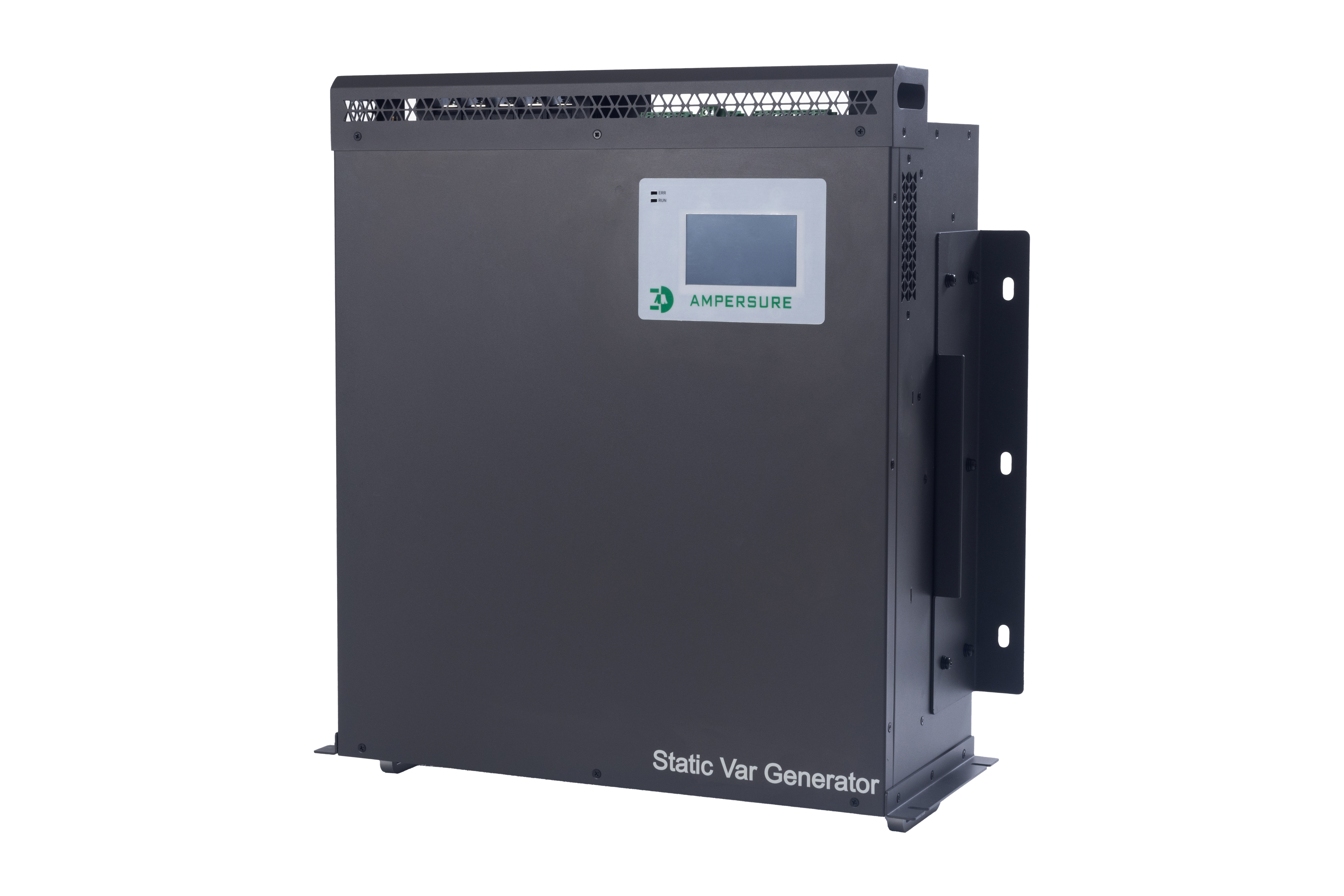

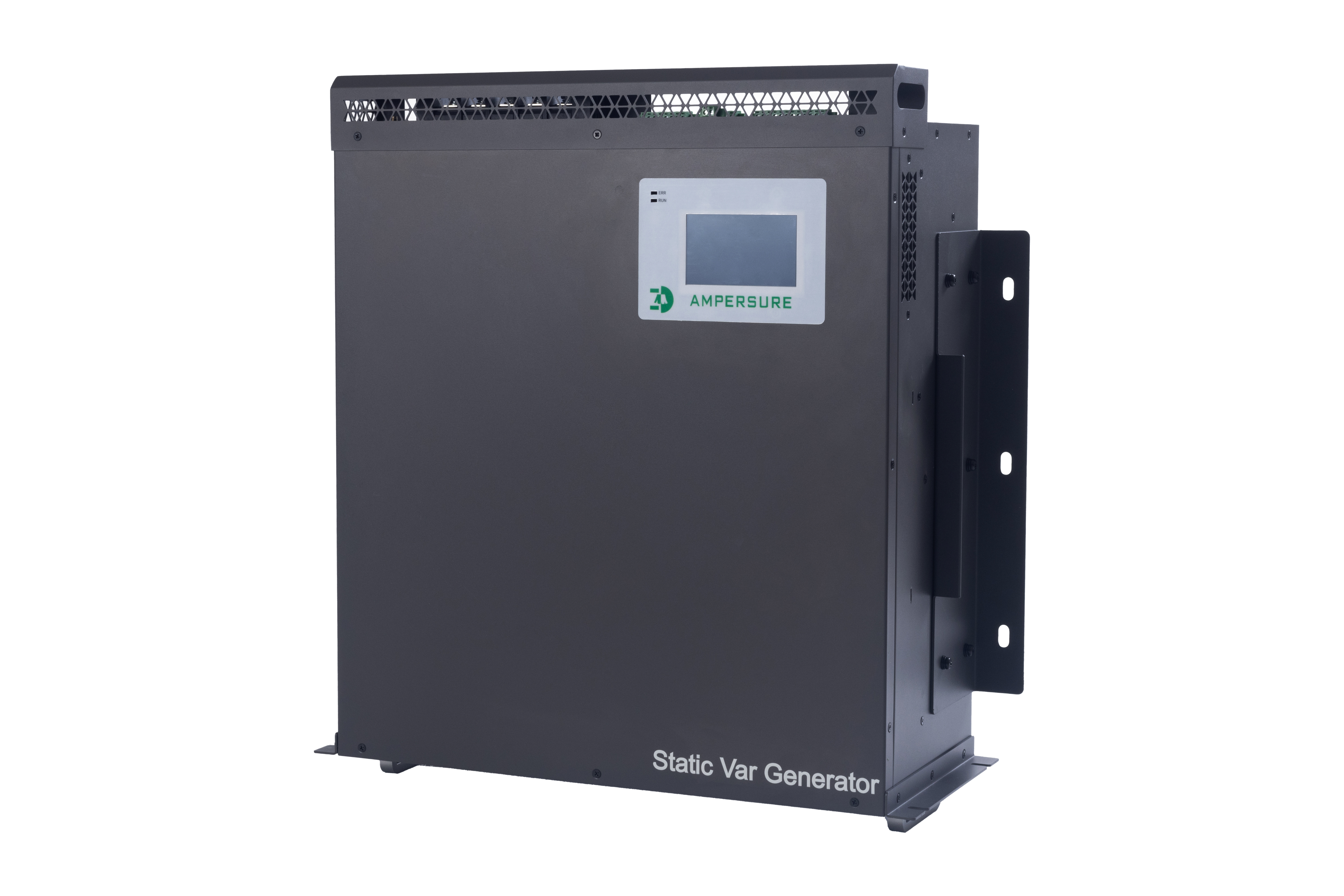

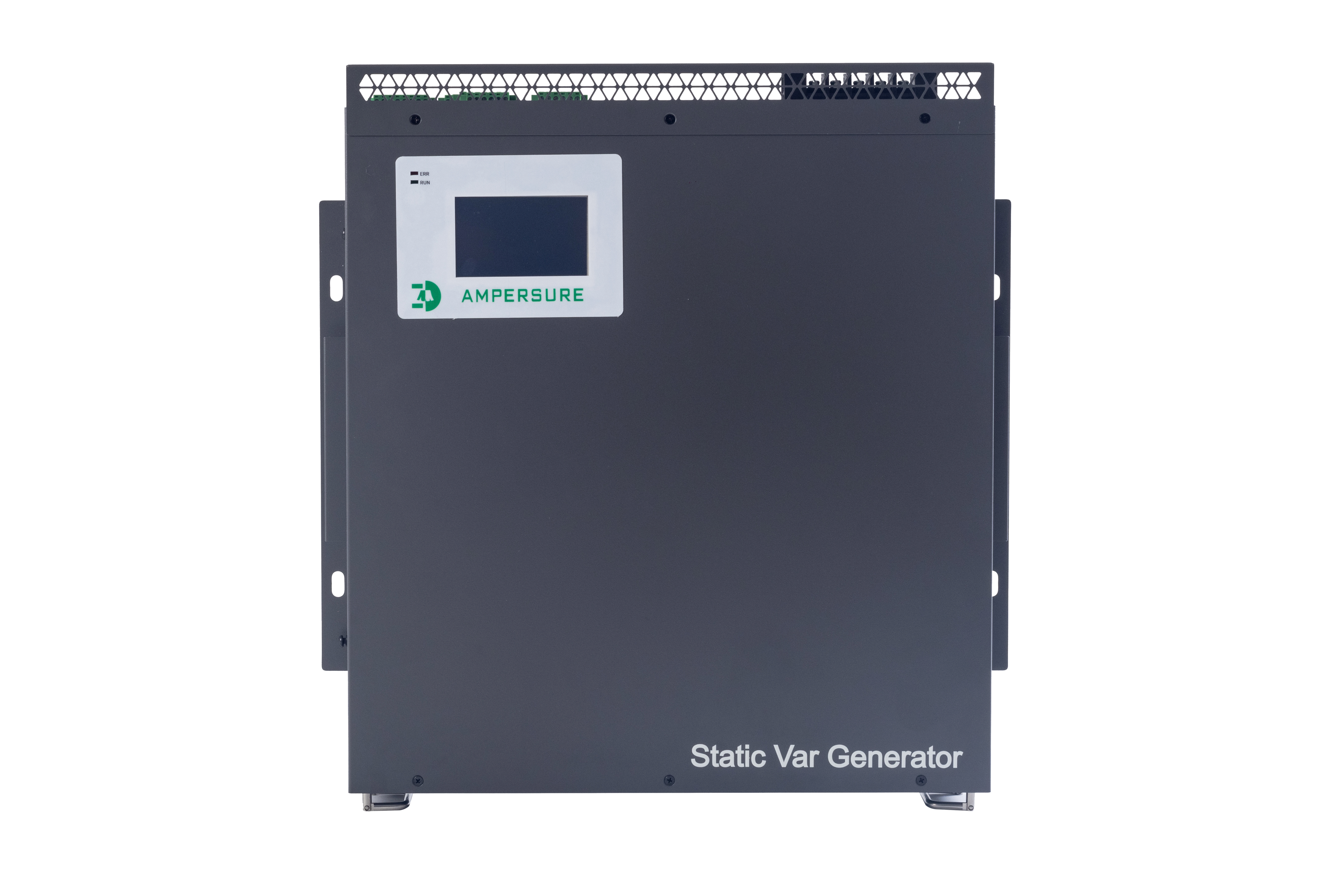

800V Static Var Generator (SVG)
-
Rated Frequency: 50Hz/60Hz(45Hz~63Hz)
- Compensating Current: 150kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Technical Specification
- Product Appearance
- Related Products
Product Overview

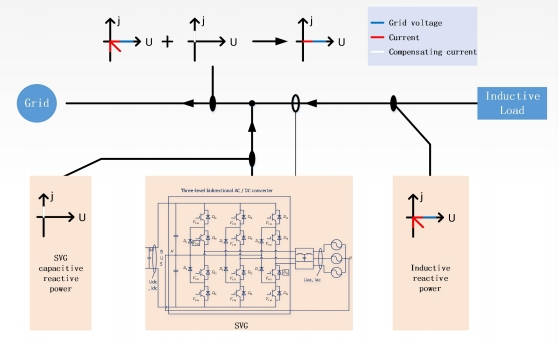

The Static Var Generator (SVG) works by connecting a voltage source converter in parallel to the power grid through a filter. By adjusting the amplitude and phase of the AC output voltage of the converter, it dynamically and accurately compensates for reactive power in the power grid system. The transient response time is less than 50µs and the full response time is less than 10ms, avoiding over-compensation and under-compensation.
SVG 800V Technical Specification
|
Altitude
|
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature
|
-10~+50℃ (Derated above 40℃) |
|||
|
Relative Humidity
|
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level
|
Below Level III
|
|||
|
Operating Voltage
|
AC800V (-20%~850V)
|
|||
|
Operating Frequency
|
50Hz/60Hz(45Hz~63Hz)
|
|||
|
Rated
Compensation
Capacity
|
150kvar
|
|||
|
Power Grid Structure
|
3P3W
|
|||
|
Numbers in Parallel
|
Unlimited
|
|||
|
System
Efficiency
|
≥97%
|
|||
|
Switching Frequency
|
12.8kHz
|
|||
|
Function Selection
|
Reactive Power
|
|||
|
Full Response Time
|
<10ms
|
|||
|
Noise
|
≤65dB
|
|||
|
Communication
|
2*RS485 Communication Ports(Supports WIFI)
|
|||
|
Protection
|
Overload,
Software/Hardware Overcurrent,
Over/UnderVoltage,
Voltage Unbalance, Power Supply Fault
Overtemperature,
Frequency Abnormality, Short Circuit Protection
|
|||
|
Installation
|
Rack-Mounted,Wall-Mounted
|
|||
|
Entry Line Method
|
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted)
|
|||
|
Protection Level
|
IP20（IP54 is customizable）
|
|||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS SVG-0.8-150k/3L-W |
150 |
800 |
839*500*328.5 |
Forced Air Cooling |
