220V Silicon Carbide Advanced Static Var Generator (ASVG-SiC)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 37kvar,50kvar
- Reactive Power Compensation Rate : ＞99%
- Machine Efficiency : >98%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview：

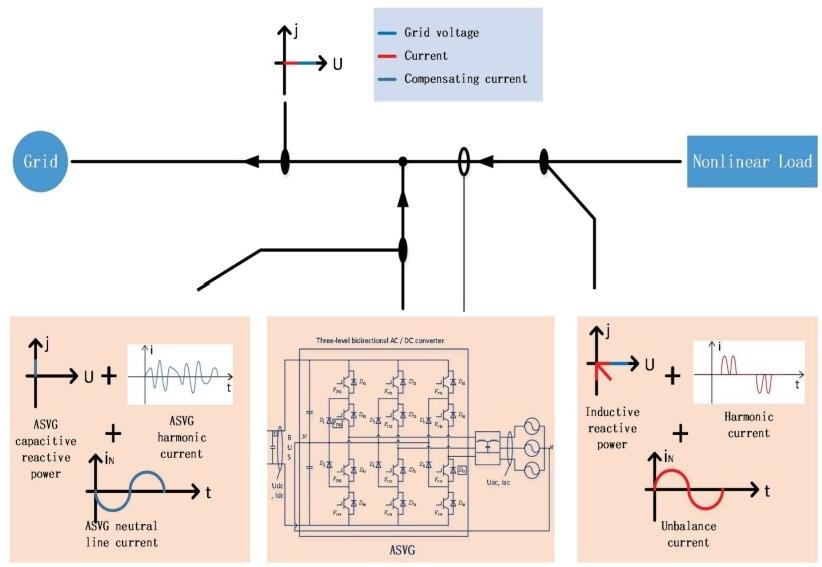

The ASVG-SiC takes silicon carbide power devices as the core, and connects the voltage source converter to the power grid in parallel through a filter. Its working principle is to realize comprehensive compensation for reactive current, harmonic current and three-phase unbalanced active power by detecting the load current in real time, generating corresponding IGBT drive signals based on advanced reactive, harmonic and three-phase active power detection and control algorithms. Meanwhile, the device has a peak efficiency of over 98.5%, each cabinet can accommodate 8 modules, the maximum capacity can reach 800kvar, and it is convenient for installation and maintenance.
ASVG-SiC 220V Technical Specification
|
ASVG-SiC 220V |
|
| Altitude | ＜2000m(derated per GB/T3859.2 above 2000m) |
| Ambient Temperature | -10～+50℃（Derating above 40℃） |
| Relative Humidity | ≤90%，no condensation on surface at monthly min. temperature of 25℃ |
| Pollution Level | Below Level III |
| Operating Voltage | AC220V（-20%～+20%） |
| Operating Frequency | 50Hz/60Hz（45Hz～63Hz） |
| Rated Compensation Capacity | 37kvar、50kvar |
| Power Grid Structure | Three-phase Three-wire/Three-phase Four-wire |
| Number of Parallel Units | Unlimited |
| Full Load Efficiency | ≥98% |
| Switching Frequency | 30kHz |
| Feature Selection | Reactive Power, Harmonic, Reactive Power + Harmonic , Harmonic + Reactive Power , Harmonic + Unbalance, Reactive Power +Unbalance, Harmonic + Unbalance +Reactive Power, Reactive Power + Unbalance + Harmonic |
| Comprehensive Compensation Rate | Reactive Power ≥99%，Unbalance ≥95%，2nd～50th order comprehensive Harmonic compensation≥95% |
| Neutral Line Filtering Capability | The neutral line filtering capacity is 3 times that of the phase filtering capacity |
| Total Response Time | Reactive Power＜10ms,Harmonic <40ms |
| Noise | ≤65dB |
| Communication | 2* RS485 Communication Ports(Support Wi-Fi) |
| Protection | Overload,Software/Hardware,Overcurrent, Over/Undervoltage Unbalance |
| Power Supply Fault, Overtemperature, Frequency Abnormality, Short Circuit Protection | |
| Overload Capacity | Rated 1.2 times overload for 60 seconds |
| Installation | Rack-Mounted,Wall-Mounted |
| Entry Line Method | Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
| Protection Level | IP20(IP54 is customizable) |
ASVG-SiC 220V Product Appearance
| Module model | ||||
| Models | Compensation Capacity(kvar) | System Voltage(V) | Dimensions | Cooling System |
| Width*Depth*Height | ||||
| (mm) | ||||
| AMS | 37 | 220 | 500*600*100mm | Forced Air Cooling |
| ASVG-SiC-0.22-37k/4L-W | ||||
| AMS | 50 | 220 | 500*600*100mm | Forced Air Cooling |
| ASVG-SiC-0.22-50k/4L-W | ||||
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
