800V Active Harmonic Filter (AHF)
-Rated Frequency: 50Hz/60Hz(45Hz~63Hz)
-Compensating Current: 100A
-Harmonic Compensation Rate: ≥95%
-Efficiency: ≥97%
-Installation: Rack-Mounted, Wall-Mounted
- Overview
- Technical Specification
- Product Appearance
- Related Products
Product Overview
The working principle of AHF is to detect the load current in real time.Based on a specified sub harmonic current detection algorithm,the harmonic current is gradually separated,and a control signal is generated according to the set fltering percentage to drive the IGBT to output a compensation current with the same amplitude and opposite phase as the load harmonic current,achieving the purpose of harmonic compensation function.
AHF 800V Technical Specification
|
AHF 400V Series |
||||
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature |
-10~+50℃ (derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC800V (-20%~850V) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
100A |
|||
|
Power Grid Structure |
3P3W |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
12.8kHz |
|||
|
Function Selection |
Harmonics |
|||
|
Compensation Scope |
2~50 times,with adjustable compensation rate per time |
|||
|
Harmonic Compensation Rate |
≥95% |
|||
|
Full Response Time |
<40ms |
|||
|
Communication |
2*RS485 communication interfaces (Supports WIFI) |
|||
|
Protection |
Overload,Software/Hardware Overcurrent,Over/Undervoltage,Unbalance, Power Supply Fault, Overtemperature, Frequency Anomaly, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet(Rack-Mounted),Top Inlet(Wall-Mounted) |
|||
|
Protection Level |
IP20（IP54 is customizable） |
|||

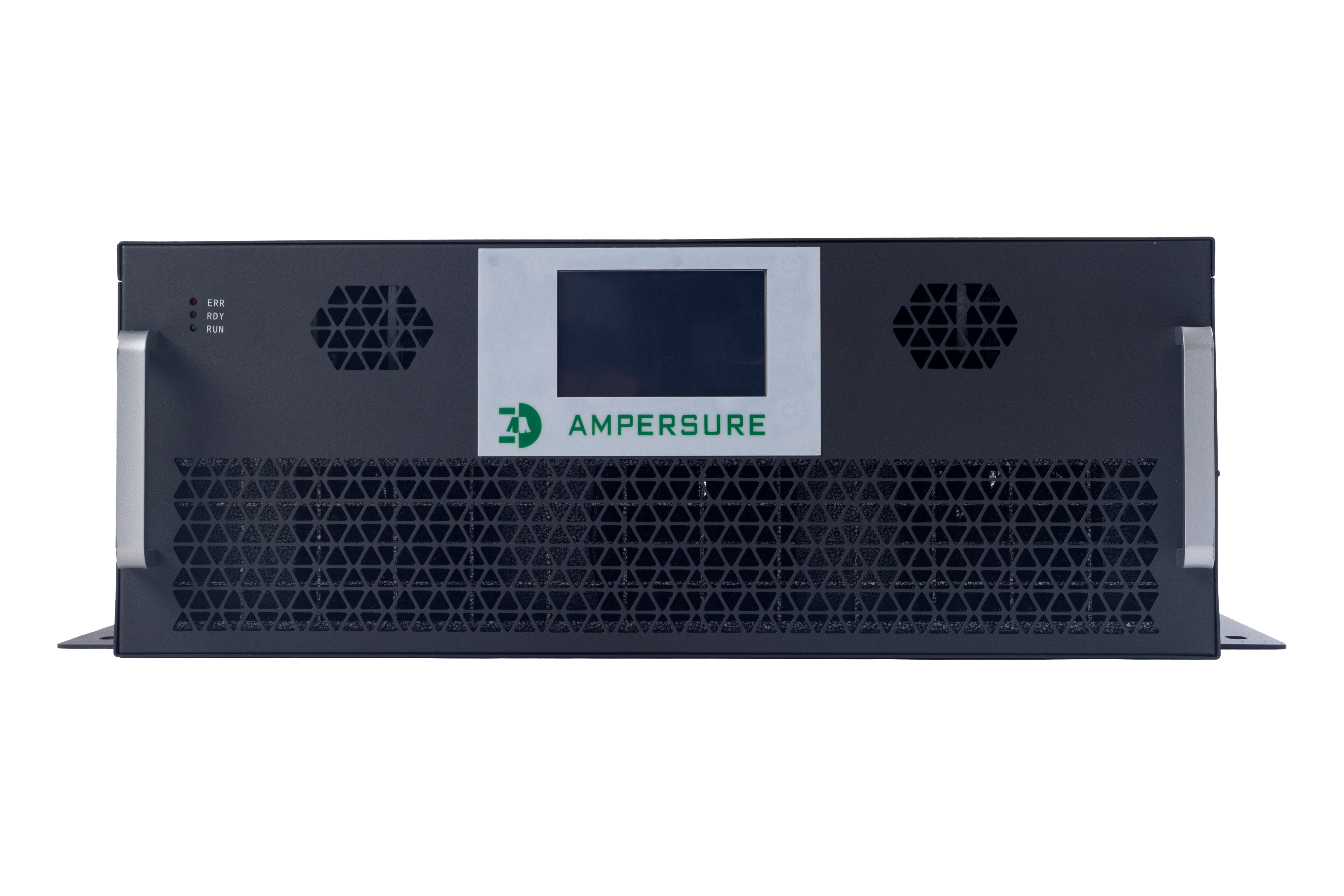

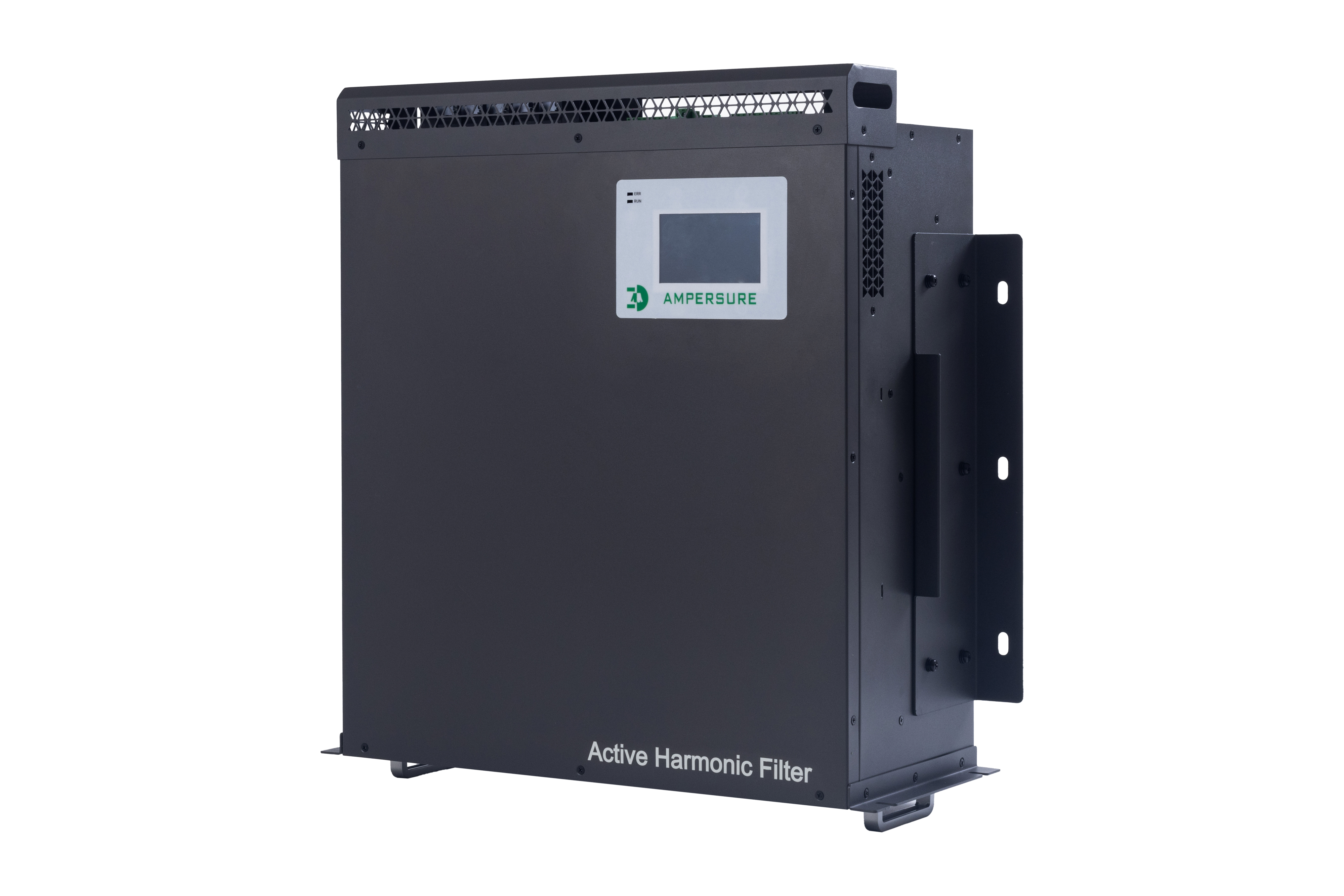

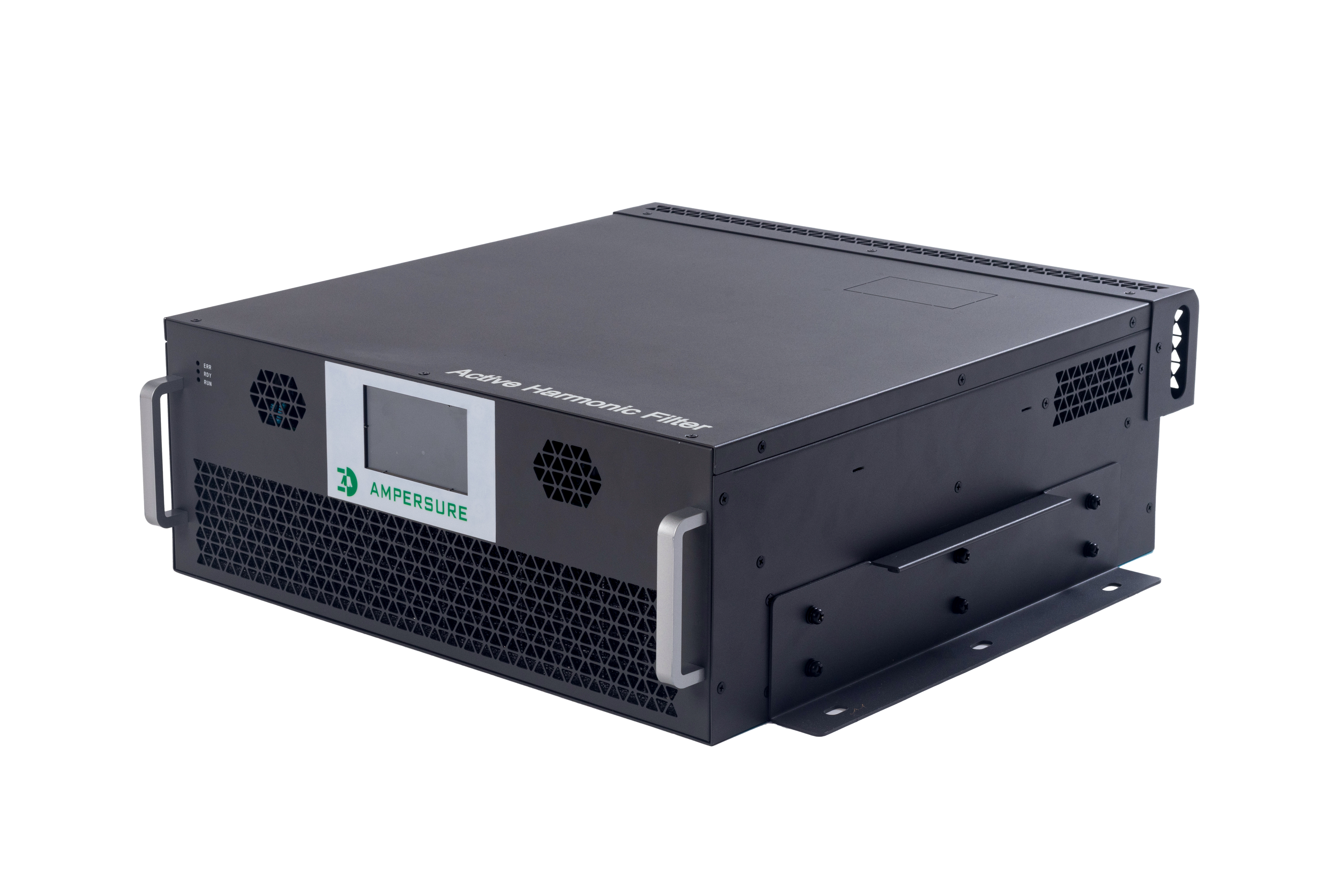

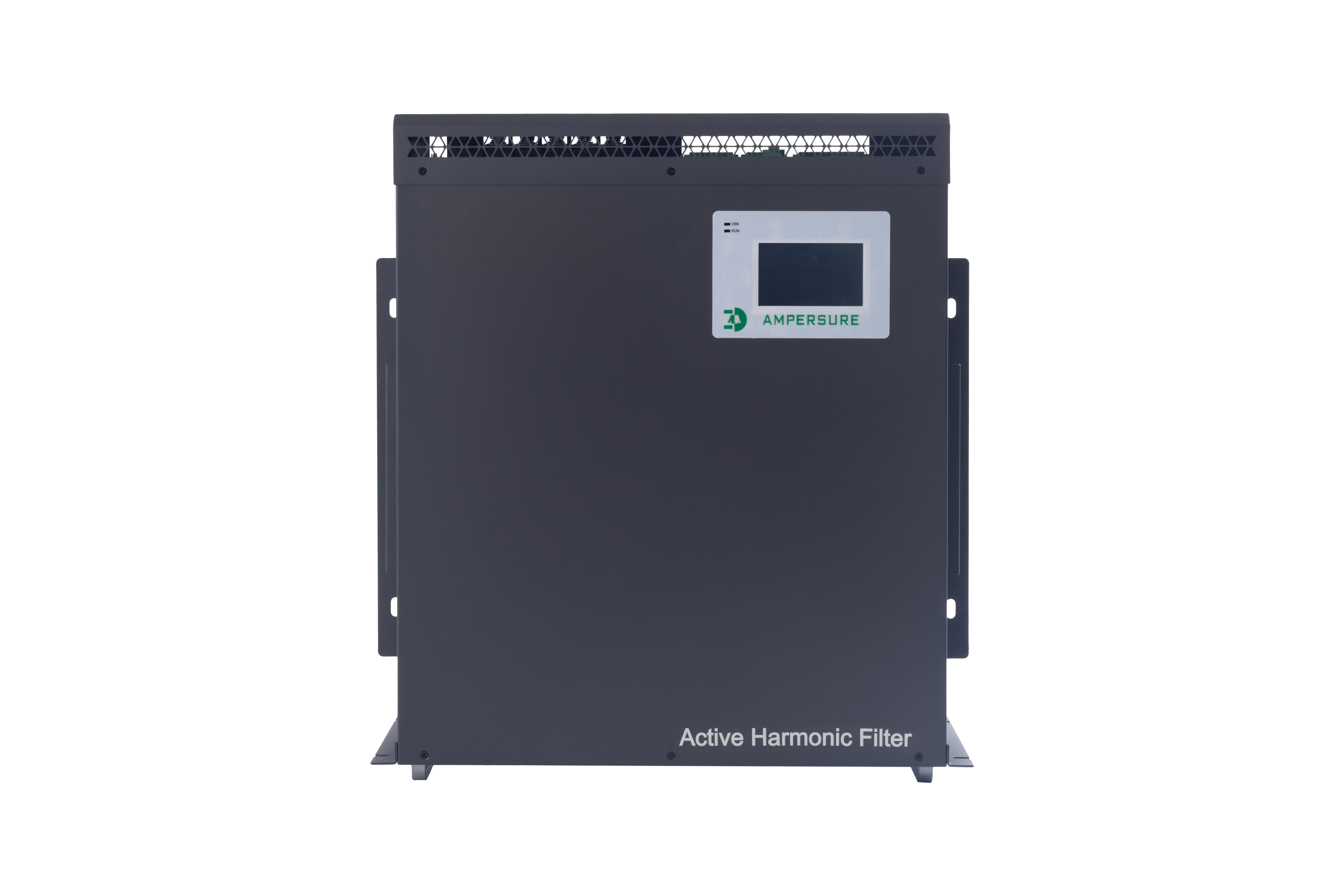

AHF 800V Product Appearance
|
Module Model |
||||
|
Models |
Compensation Capacity(A) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMS AHF-0.8-100A/3L-W |
100 |
800 |
839*500*328.5 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
