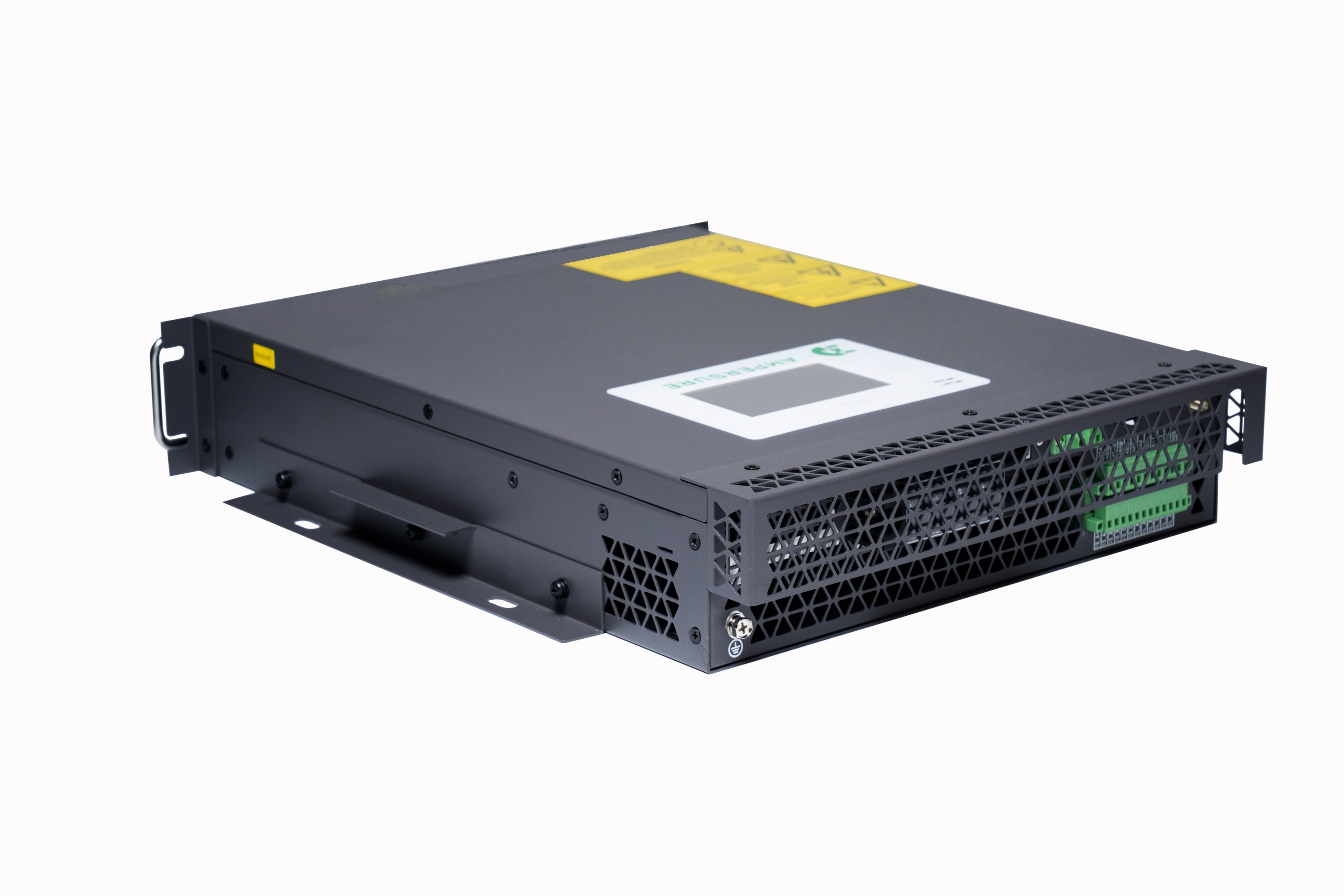

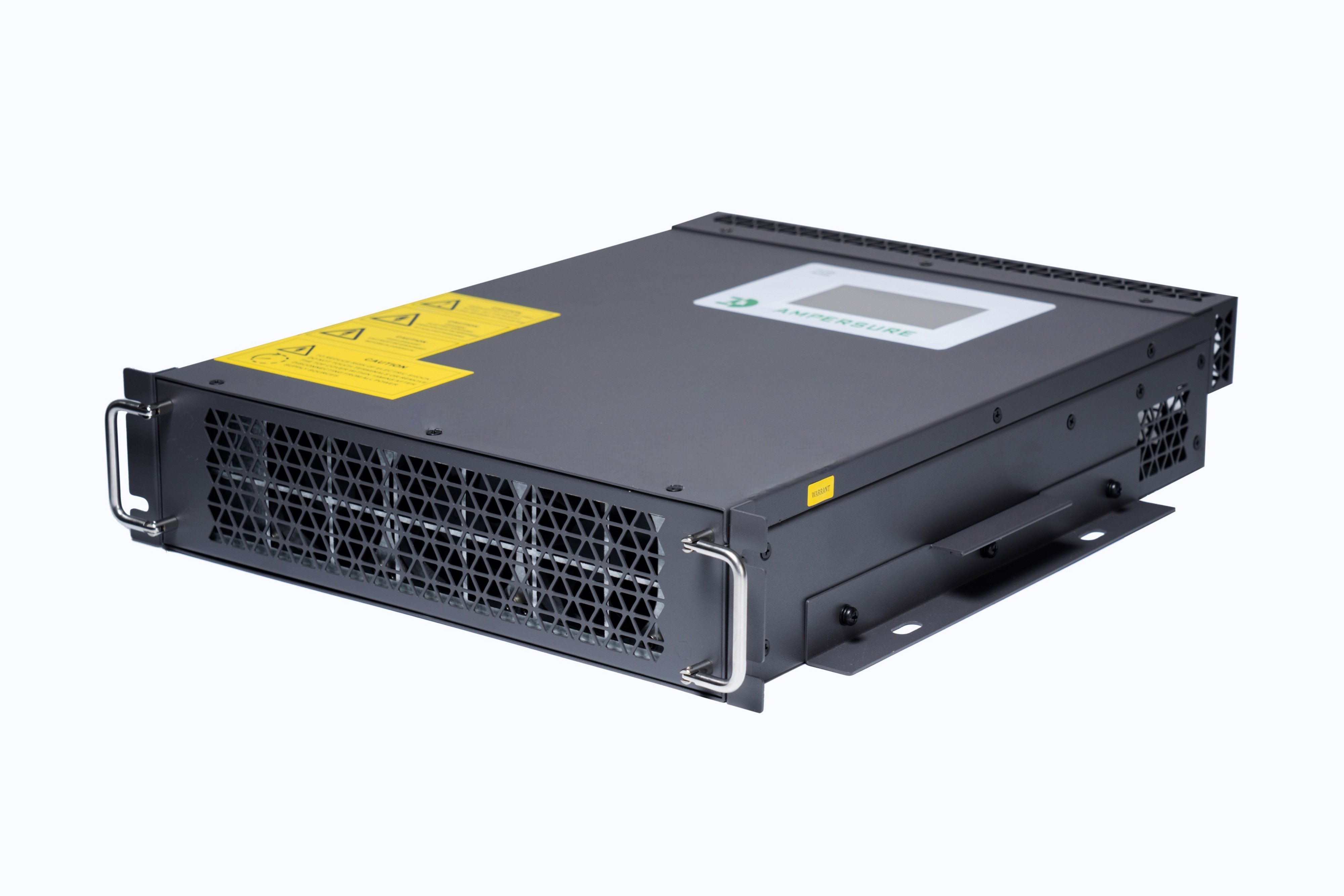

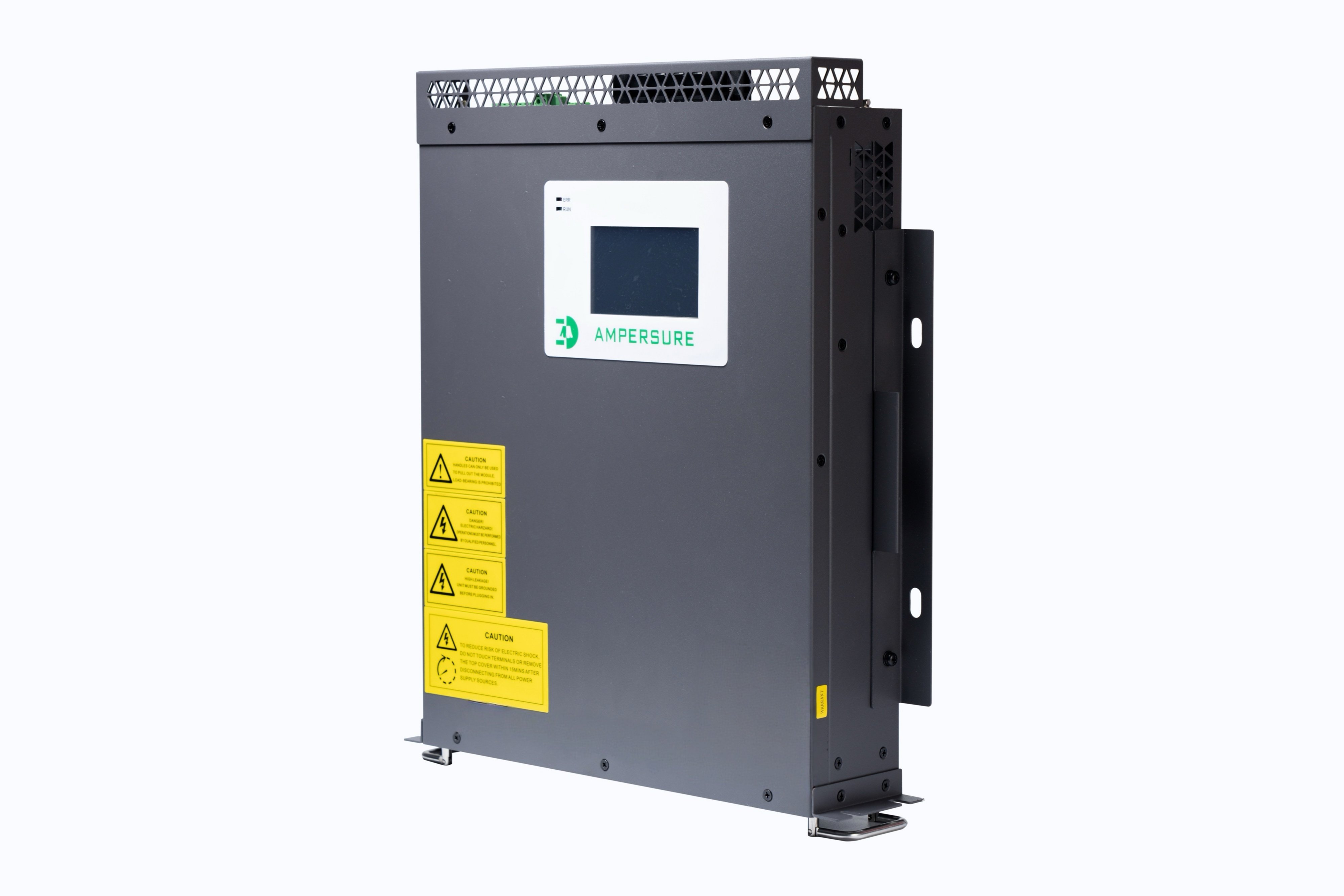

220V Active Harmonic Filter (AHF)
- Rated Frequency: 50Hz/60Hz(45Hz~63Hz)
- Compensating Current: 2L:25A;3P3L/3P4L:7A,15A,25A,50A,75A,100A,150A
- Harmonic Compensation Rate: ＞92%
- Efficiency: >97%
- Installation: Rack-mounted, Wall-mounted
- Power grid connection: Single Phase/Three-Phase Three-Wire/Three-Phase Four-Wire
- Overview
- Specification
- Related Products
Product Overview
The working principle of an active harmonic flter is to detect the load current in real time.Based on a specified sub harmonic current detection algorithm,the harmonic current is gradually separated,and a control signal is generated according to the set fltering percentage to drive the IGBT to output a compensation current with the same amplitude and opposite phase as the load harmonic current,achieving the purpose of harmonic cancellation.
AHF 220V Technical Specification
|
AHF 220V Series |
||||
|
Altitude |
<2000m,Usageshouldbede-ratedaccordingtotheinternationalstandardIEC3859-2 foraltitudesabove2000meters. |
|||
|
Ambient Temperature |
-10~+50℃ (derated above 40℃) |
|||
|
Relative Humidity |
≤90%,monthly minimum temperature 25℃,nocondensation on the surface |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC220V±20% |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
2L:25A 3P3L/3P4L:7A,15A,25A,50A,75A,100A,150A |
|||
|
Power Grid Structure |
L/N、3P3L、3P4L |
|||
|
Numbersin Parallel |
Not supported |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
32kHz |
|||
|
Function Selection |
Harmonics |
|||
|
Compensation Scope |
2~50 times,with adjustable compensation rate per time |
|||
|
Harmonic Compensation Rate |
>92% |
|||
|
Full Response Time |
<10ms |
|||
|
Communication |
2*RS485 Communication Ports(Supports GPRS/WIFI) |
|||
|
Protection |
Overload, software/hardware over current, power grid over voltage/under voltage power failure. over-temperature, frequency abnormality, short circuit protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet(rack-mounted), Top Inlet(wall-mounted) |
|||
|
Protection Level |
IP20 |
|||
