220V Nature Cooling Advanced Static Var Generator (ASVG-NC)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 7kvar,17kvar；
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview

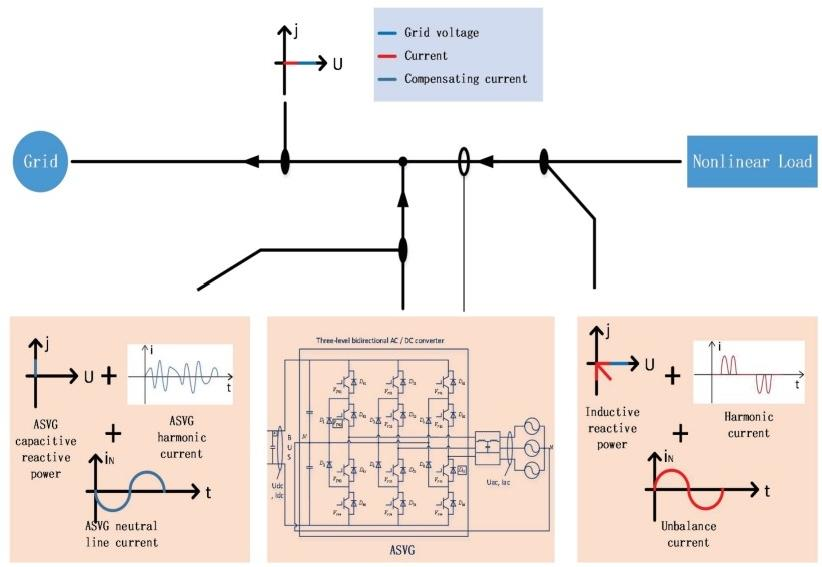

The ASVG-NC connects a voltage source converter in parallel to the power grid via a filter. Its operating principle involves real-time monitoring of the load current and, based on advanced reactive power, harmonic current, and three-phase active power detection and control algorithms, generating corresponding IGBT drive signals to comprehensively compensate for reactive current, harmonic current, and unbalanced active power. Furthermore, the device features an IP66 outdoor protection rating, noise levels less than 40dB, and supports a built-in grid-side sampling current transformer (CT), making installation and maintenance convenient and extending its service life.
ASVG-NC 220V Technical Specification
| ASVG-NC 220V | |
| Altitude | ＜2000m（derated per GB/T 3859.2 above 2000m） |
| Ambient Temperature | -10～+50℃（Derating above 40℃） |
| Relative Humidity | ≤90%, no condensation on surface at monthly min. temperature of 25℃ |
| Pollution Level | Below Level III |
| Operating Voltage | AC220V（-20%～+20%） |
| Operating Frequency | 50Hz/60Hz（45Hz～63Hz） |
| Rated Compensation Capacity | 7kvar,17kvar |
| Power Grid Structure | Three-phase Three-wire/Three-phase Four-wire |
| Number of Parallel Units | Unlimited |
| Full Load Efficiency | ≥97% |
| Switching Frequency | 16kHz |
| Feature Selection | Reactive Power, Harmonic , Reactive Power + Harmonic, Harmonic + Reactive Power, Harmonic + unbalance, Reactive Power +unbalance , Harmonic + unbalance + Reactive Power, Reactive Power + Unbalance + Harmonic |
| Comprehensive Compensation Rate | Reactive Power ≥99%，Unbalance ≥95%，2nd～50th order comprehensive harmonic compensation≥95% |
| Neutral Line Filtering Capability | The neutral line filtering capacity is 1.5 times the phase filtering capacity |
| Full Response Time | Reactive Power＜10ms,Harmonic<40ms |
| Noise | ≤40dB |
| Communication | 2*RS485 communication interface (Support Wi-Fi) |
| Protection | Overload, Software/Hardware Overcurrent, Over /Under voltage, Unbalance |
| Power Supply Fault, Overtemperature, Frequency Abnormality,Short Circuit Protection | |
| Overload Capacity | Rated 1.2 times overload for 60 seconds |
| Installation | Wall-Mounted |
| Entry Line Method | Down Line |
| Protection Level | IP66 |
ASVG-NC 220V Product Appearance
| Module Model | ||||
| Models | Compensation Capacity(kvar) | System Voltage(V) | Dimensions | Cooling System |
| Width*Depth*Height | ||||
| (mm) | ||||
| AMS | 7 | 220 | 885*490*220mm | Forced Air Cooling |
| ASVG-NC-0.22-7k/4L-W | ||||
| AMS | 15 | 400 | 885*490*220mm | Forced Air Cooling |
| ASVG-NC-0.4-15k/4L-W | ||||
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
