400V Static Var Generator (SVG)
- Rated Frequency: 50Hz/60Hz(45Hz~63Hz)
- Compensating Current: 5kvar, 10kvar, 15kvar, 20kvar, 35kvar, 50kvar, 75kvar, 100kvar,150kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview
The Static Var Generator (SVG) works by connecting a voltage source converter in parallel to the power grid through a filter. By adjusting the amplitude and phase of the AC output voltage of the converter, it dynamically and accurately compensates for reactive power in the power grid system. The transient response time is less than 50µs and the full response time is less than 10ms, avoiding over-compensation and under-compensation.
SVG 400V Technical Specification
|
SVG 400V Series |
||||
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature |
-10~+50℃ (Derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC380V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz~63Hz) |
|||
|
Rated Compensation Capacity |
5kvar, 10kvar, 15kvar, 20kvar, 35kvar, 50kvar, 75kvar, 100kvar,150kvar |
|||
|
Power Grid Structure |
3P3W,3P4W |
|||
|
Numbers in Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
16kHz |
|||
|
Function Selection |
Reactive Power,Reactive Power+Unbalance |
|||
|
Full Response Time |
<10ms |
|||
|
Noise |
≤65dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Over/UnderVoltage, Voltage Unbalance, Power Supply Fault Overtemperature, Frequency Abnormality, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
|||
|
Protection Level |
IP20（IP54 is customizable） |
|||

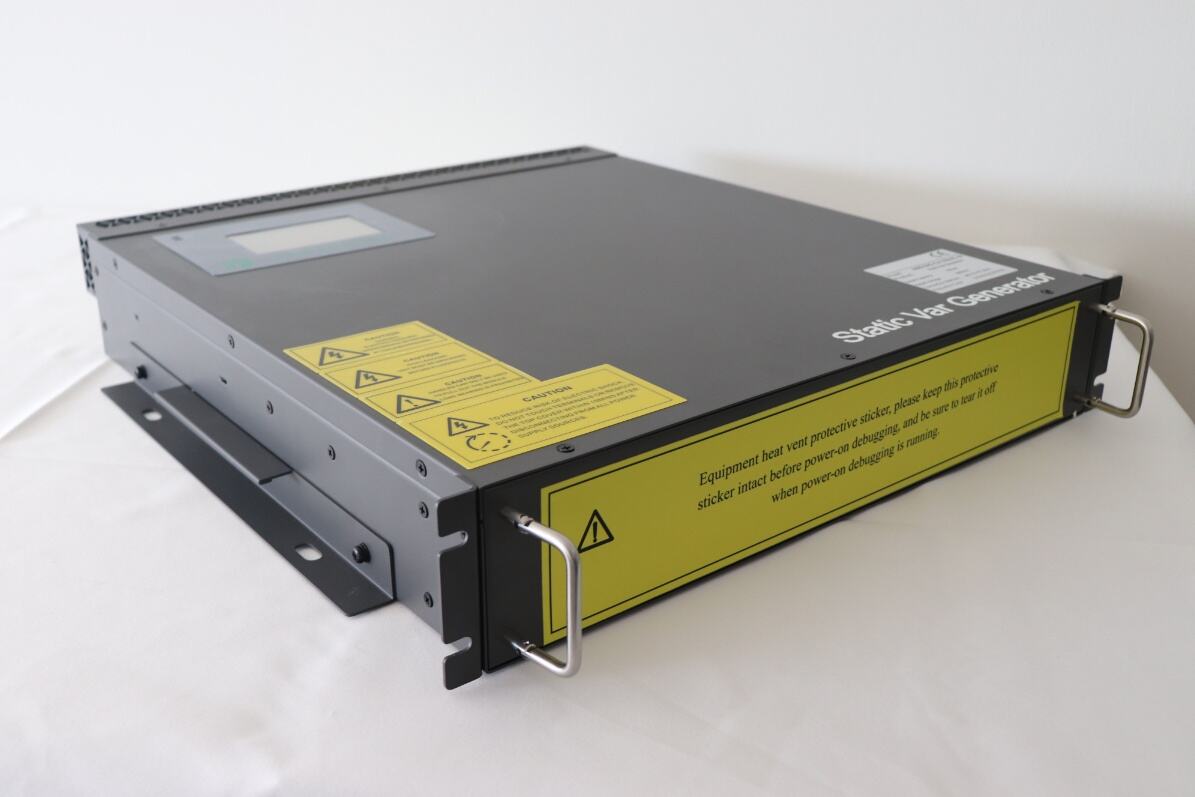

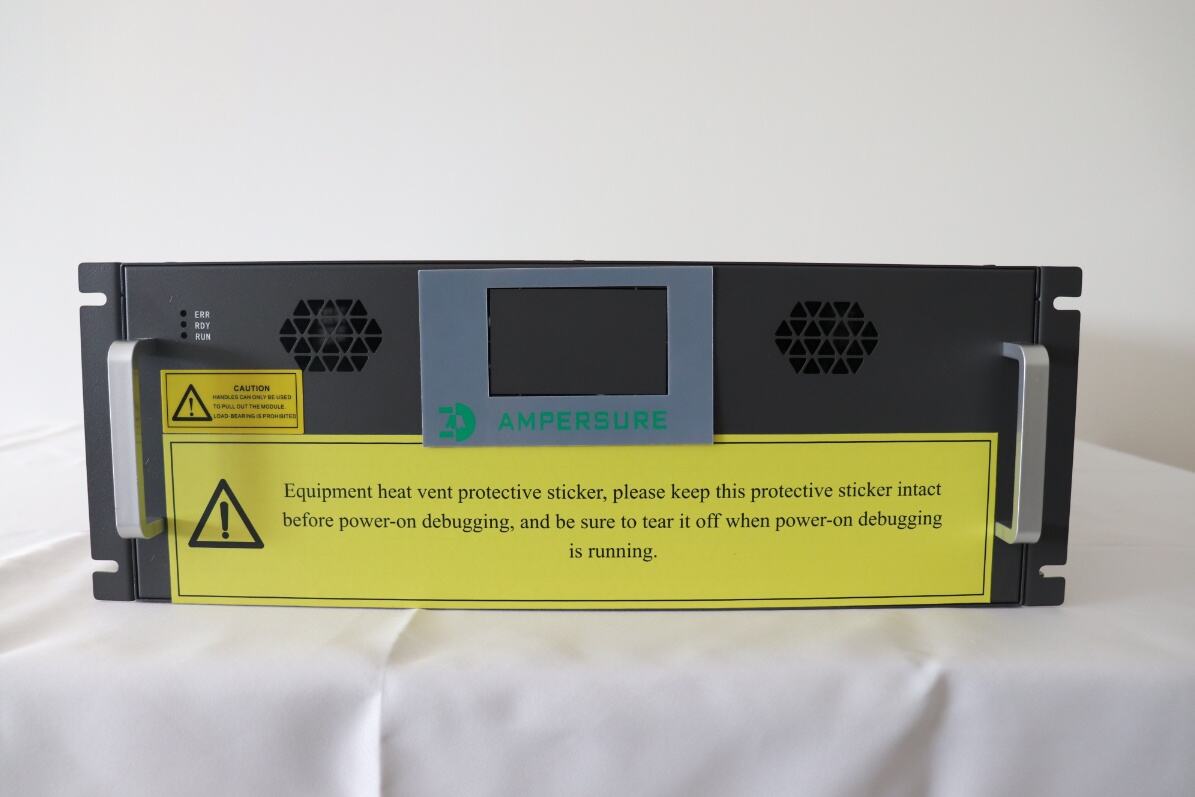

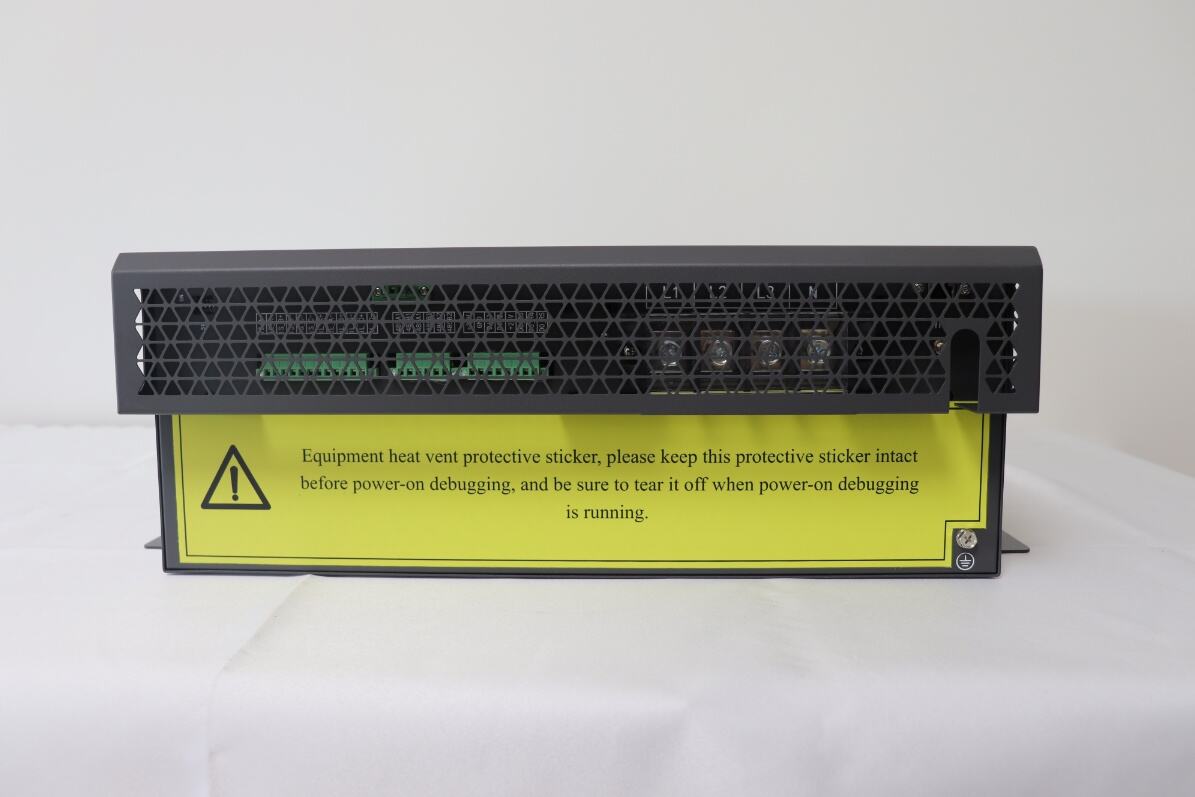

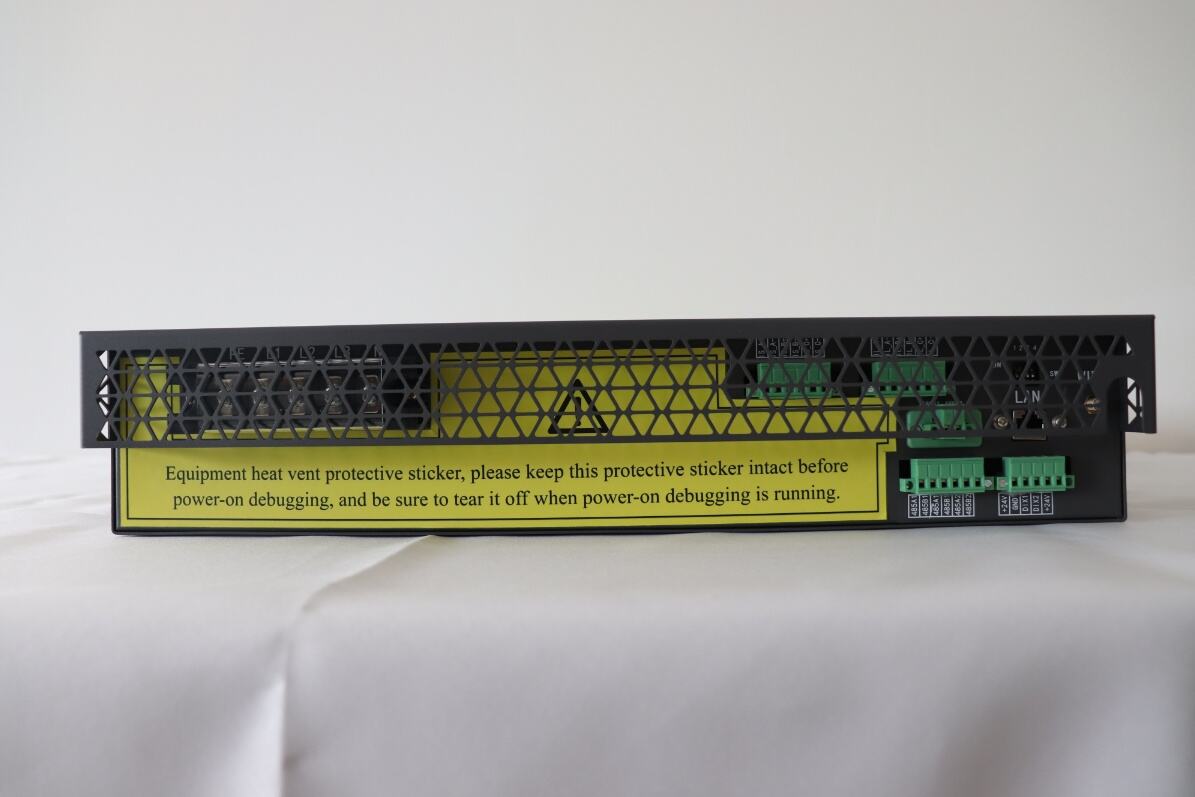

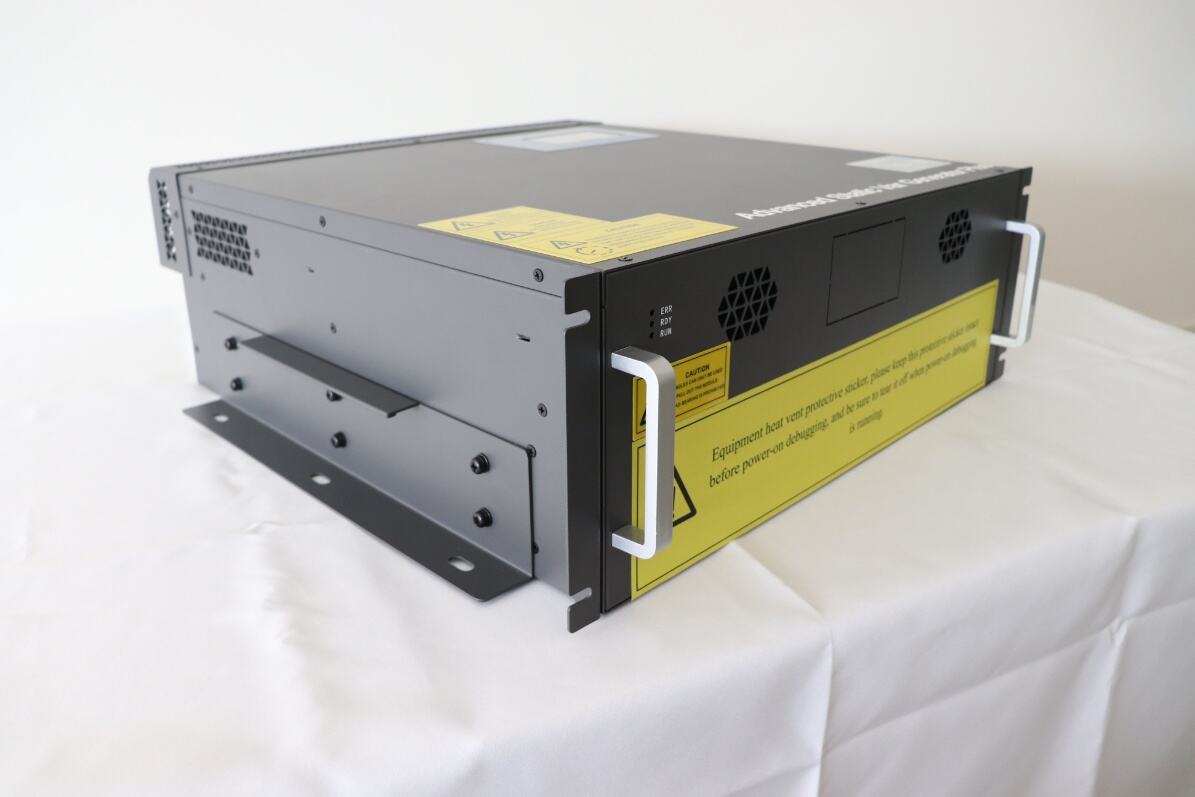

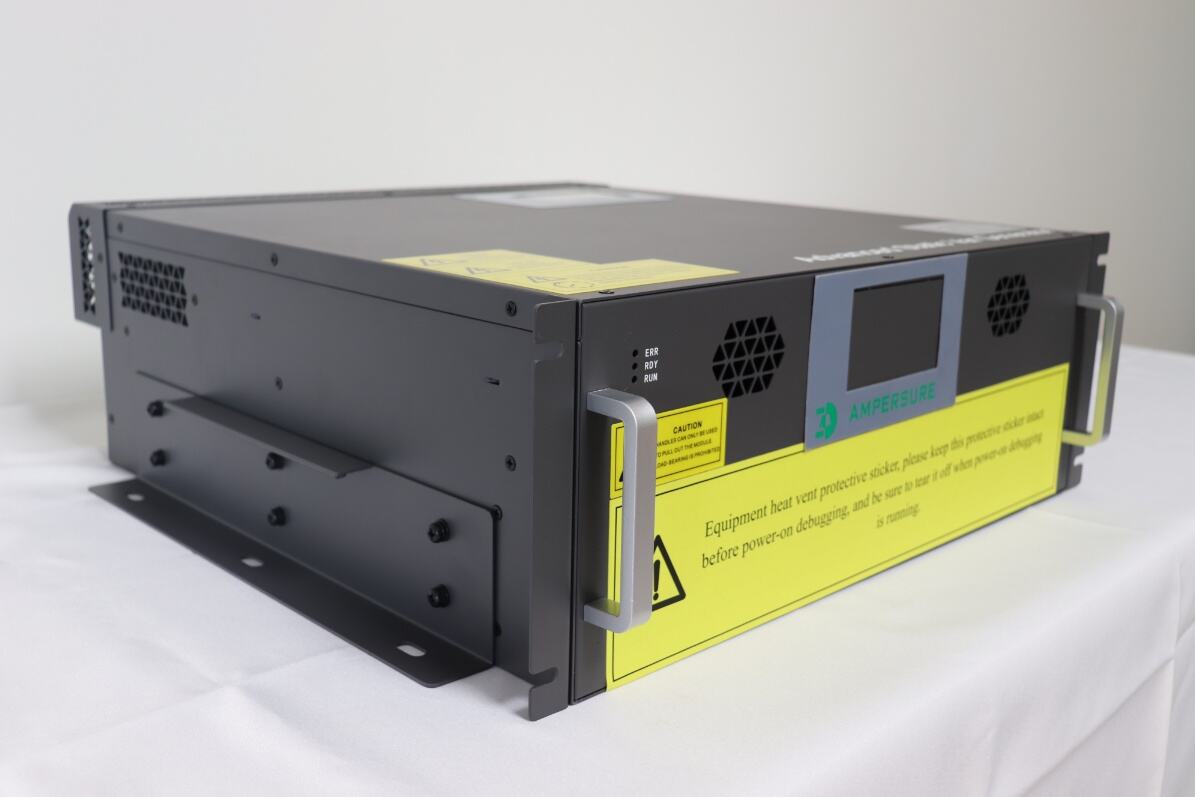

SVG 400V Product Appearance
|
Module Model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS SVG-0.4-10k/4L-W |
10 |
400 |
550*460*92.2 |
Forced Air Cooling |
|
AMS SVG-0.4-15k/4L-W |
15 |
400 |
550*460*92.2 |
Forced Air Cooling |
|
AMS SVG-0.4-35k/4L-W |
35 |
400 |
550*460*92.2 |
ForcedAir Cooling |
|
AMS SVG-0.4-50k/4L-W |
50 |
400 |
587*460*92.2 |
Forced Air Cooling |
|
AMS SVG-0.4-75k/4L-W |
75 |
400 |
624*500*243.2 |
Forced Air Cooling |
|
AMS SVG-0.4-100k/4L-W |
100 |
400 |
624*500*243.2 |
Forced Air Cooling |
| AMS SVG-0.4-150k/4L-W | 150 | 400 | 785*511*252.0 | Forced Air Cooling |
|
Cabinet Model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS SVG-0.4-200k/4L-C |
200 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.4-250k/4L-C |
250 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.4-300k/4L-C |
300 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMS SVG-0.4-400k/4L-C |
400 |
400 |
1250*1000*2200 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
