Advanced Static Var Generator Plus(ASVG-Plus)
-Theory: Adopting a DSP + CPLD digital control core, three-level topology technology, and advanced algorithms for reactive power, harmonic, and three-phase unbalanced detection to achieve comprehensive power quality management.
-Operating frequency: 50Hz/60Hz (45Hz~63Hz).
-Power grid structure: Three-phase three-wire, three-phase four-wire.
-External current sampling channel: Two current sampling channel.
-Operation Mode: Reactive Power, Unbalance, Harmonic.
-Compensation mode: Low voltage sampling low voltage compensation, high voltage sampling low voltage compensation, reactive power component.
-Neutral line filtering capability: The neutral line filtering capability is three times that of the phase filtering capability.
- Overview
- Specification
- Apparence
- Related Products
Product Overview

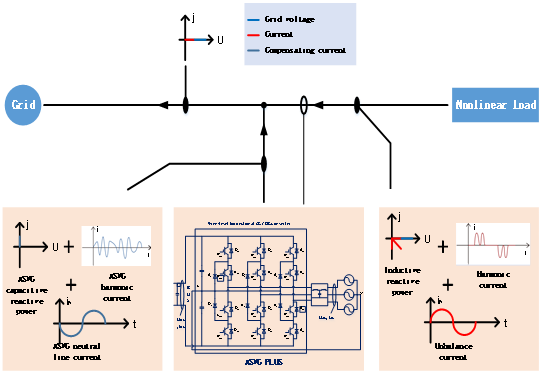

The Advanced Static Var Generator Plus (ASVG-Plus) operates by connecting a voltage source converter in parallel with the power grid through a filter. By real-time monitoring of the load current and utilizing advanced algorithms for reactive power, harmonic current, and three-phase active power detection and control, it generates corresponding IGBT drive signals to comprehensively compensate for reactive current, harmonic current, and three-phase unbalanced current. Furthermore, the device's neutral zero-sequence current filtering capability is up to three times that of the phase lines, resulting in superior EMC performance and stability.
Technical Specification
|
380V Series |
|
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|
Ambient Temperature |
-10°C ~ +50°C (derated above 40 ℃) |
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|
Pollution Level |
Below Level III |
|
Operating Voltage |
AC380V (-20%~+20%) |
|
Operating Frequency |
50Hz/60Hz (45Hz~63Hz) |
|
Rated Compensation Capacity |
75kvar, 100kvar |
|
Power Grid Structure |
Three-phase three-wire, Three-phase four-wire |
|
Numbers in Parallel |
Unlimited |
|
System Efficiency |
≥97% |
|
Switching Frequency |
16kHz |
|
Function Selection |
Reactive Power, Harmonics, Reactive Power + Harmonics, Harmonics + Reactive Power Harmonics + Unbalance, Reactive Power + Unbalance, Harmonics + Unbalance + Reactive Power, Reactive Power + Unbalance + Harmonics. |
|
Full Response Time |
Reactive Power <10ms, Harmonics <40ms |
|
Neutral Line Filtering Capability |
The neutral line filtering capability is three times that of the phase filtering capability. |
|
EMC Standard |
IEC 61000-4 |
|
Noise |
≤65dB |
|
Communication |
2*RS485 Communication Ports (Supports WiFi) |
|
Protection |
Overload, Software/Hardware Over Current, Over /Under Voltage,Unbalance, Power Supply Fault, Over-temperature, Frequency Anomaly, Short Circuit Protection,Resonance Protection |
|
Installation |
Rack-Mounted, Wall-Mounted |
|
Entry Line Method |
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
|
Protection Level |
IP20 |
Model Definition
|
Module Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage (V) |
Dimensions Width * Depth * Height (mm) |
Cooling System |
|
AMS ASVG Plus-0.4-75k/4L-W |
75 |
400 |
760*600*241.2 |
Forced Air Cooling |
|
AMS ASVG Plus-0.4-100k/4L-W |
100 |
400 |
760*600*241.2 |
Forced Air Cooling |
|
Cabinet Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage (V) |
Dimensions Width * Depth * Height (mm) |
Cooling System |
|
AMS ASVG Plus-0.4-200k/4L-C |
200 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS ASVG PLUS-0.4-250k/4L-C |
250 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS ASVG PLUS-0.4-300k/4L-C |
300 |
400 |
1000*1000*2200 |
Forced Air Cooling |
|
AMS ASVG PLUS-0.4-400k/4L-C |
400 |
400 |
1000*1000*2200 |
Forced Air Cooling |
