800V Advanced Static Var Generator (ASVG)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 150kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Technical Specification
- Product Appearance
- Related Products
Product Overview
The ASVG is a novel current-type power quality management device. It adjusts the phase and amplitude of the output voltage on the inverter's AC side by real-time monitoring of the load current. This allows it to provide precise, simultaneous compensation for system reactive power, harmonics, and three-phase unbalanced currents. The ASVG is characterized by its strong comprehensive compensation capabilities, fast response time, and high cost-effectiveness, making it a better solution in the field of power quality management.
ASVG 800V Technical Specification
|
ASVG 800V Series |
||||
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature |
-10°C to+50°C (derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC800V (-20%~850V) |
|||
|
Operating Frequency |
50Hz/60Hz (45Hz～63Hz) |
|||
|
Rated Compensation Capacity |
150kvar |
|||
|
Power Grid Structure |
3P3W |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
12.8kHz |
|||
|
Function Selection |
Reactive Power, Harmonics, Reactive Power+Harmonics, Harmonics+Reactive Power, |
|||
|
Full Response Time |
Reactive Power <10ms, Harmonic <40ms |
|||
|
Noise |
≤65dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Over/Undervoltage, Unbalance, Power Supply Fault, Overtemperature,Frequency Anomaly, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted, Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
|||
|
Protection Level |
IP20（IP54 is customizable） |
|||

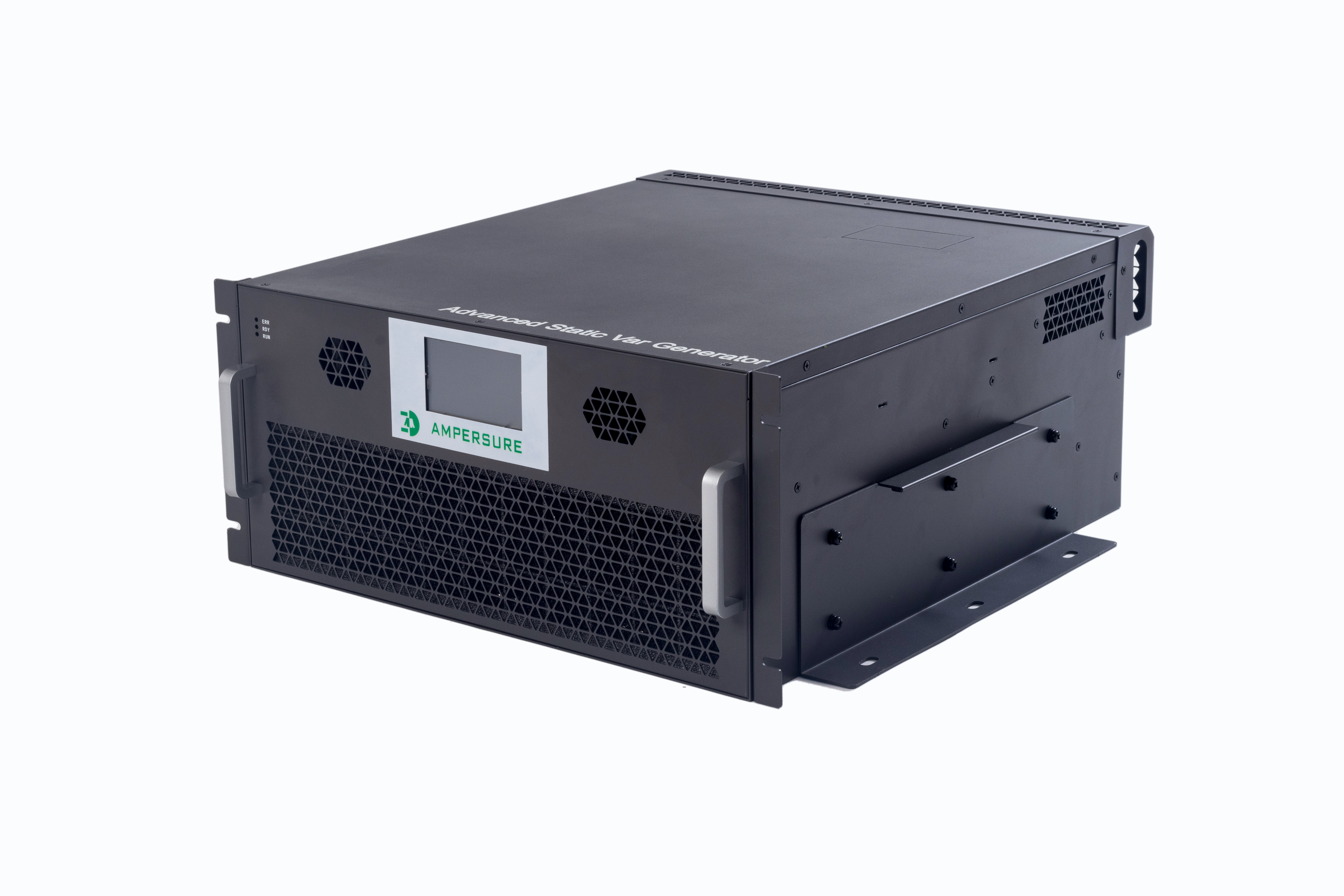

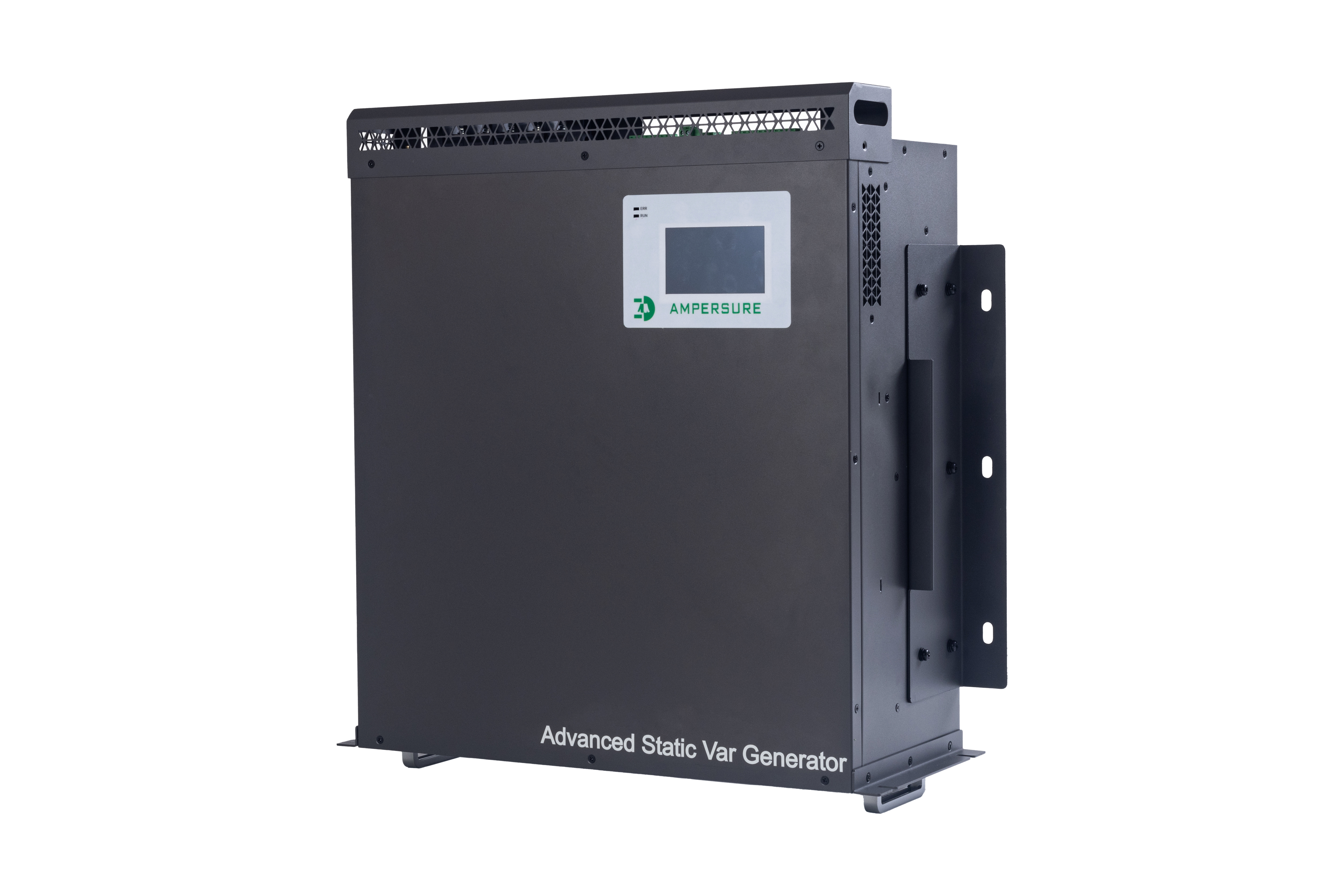

ASVG 800V Product Appearance
|
Module Model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
CoolingSystem |
|
AMS ASVG-0.8-150k/3L-W |
150 |
800 |
839*500*328.5 |
Forced Air Cooling |
