Advanced Static Var Generator 1U (ASVG-1U)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 3kvar,5kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview
The ASVG-1U features a 1U-thick design and connects a voltage source converter to the power grid through a filter.Its operating principle involves real-time detection of the load current.Based on advanced detection and control algorithms for reactive power, harmonics, and three-phase active power, it generates corresponding IGBT drive signals to achieve comprehensive compensation of reactive current, harmonic current, and three-phase unbalanced active power.
ASVG-1U Technical Specification
|
220V Series |
380V Series |
|
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|
|
Ambient Temperature |
-10℃ ~ +50℃ (derated above 40℃) |
|
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|
|
Pollution Level |
Below Level III |
|
|
Operating Voltage |
AC220V (±20%) |
AC380V (±20%) |
|
Operating Frequency |
50Hz/60Hz（45Hz～63Hz） |
|
|
Rated Compensation Capacity |
3kvar |
5kvar |
|
Power Grid Structure |
3P3W, 3P4W |
|
|
Number of Parallel Units |
Unlimited |
|
|
Overall System Efficiency at Full Load |
≥97% |
|
|
Switching Frequency |
16kHz |
|
|
Function Selection |
Reactive Power, Harmonic,Reactive Power+Harmonic, Harmonic + Reactive Power, Harmonic+Unbalance, Reactive Power + Unbalance, Harmonic + Unbalance + Reactive Power, Reactive Power + Unbalance + Harmonic |
|
|
Reactive Power |
≥ 99% |
|
|
Unbalance Compensation Capacity |
≤5% |
|
|
Current Harmonic Compensation Capability |
≥95% |
|
|
Neutral Line Filtering Capability |
The neutral line filtering capacity is 1.5 times that of the phase line filtering capacity. |
|
|
Total Response Time |
Reactive Power <10ms, Harmonics <40ms |
|
|
Noise |
≤60dB |
|
|
Communication |
2*RS485 Communication Ports (Supports WiFi) |
|
|
Protection |
Overload,Software/Hardware Overcurrent, Grid Over/Undervoltage, Unbalance,Power Supply Fault, Overtemperature, Frequency Anomaly |
|
|
Overload Capacity |
Rated for 1.2 times overload for 60 seconds. |
|
|
Installation Method |
Rack-Mounted, Wall-Mounted |
|
|
Input Method |
Rear Inlet (Rack-Mounted), Top Inlet (Wall-Mounted) |
|
|
Protection Level |
IP20（IP54 is customizable） |
|

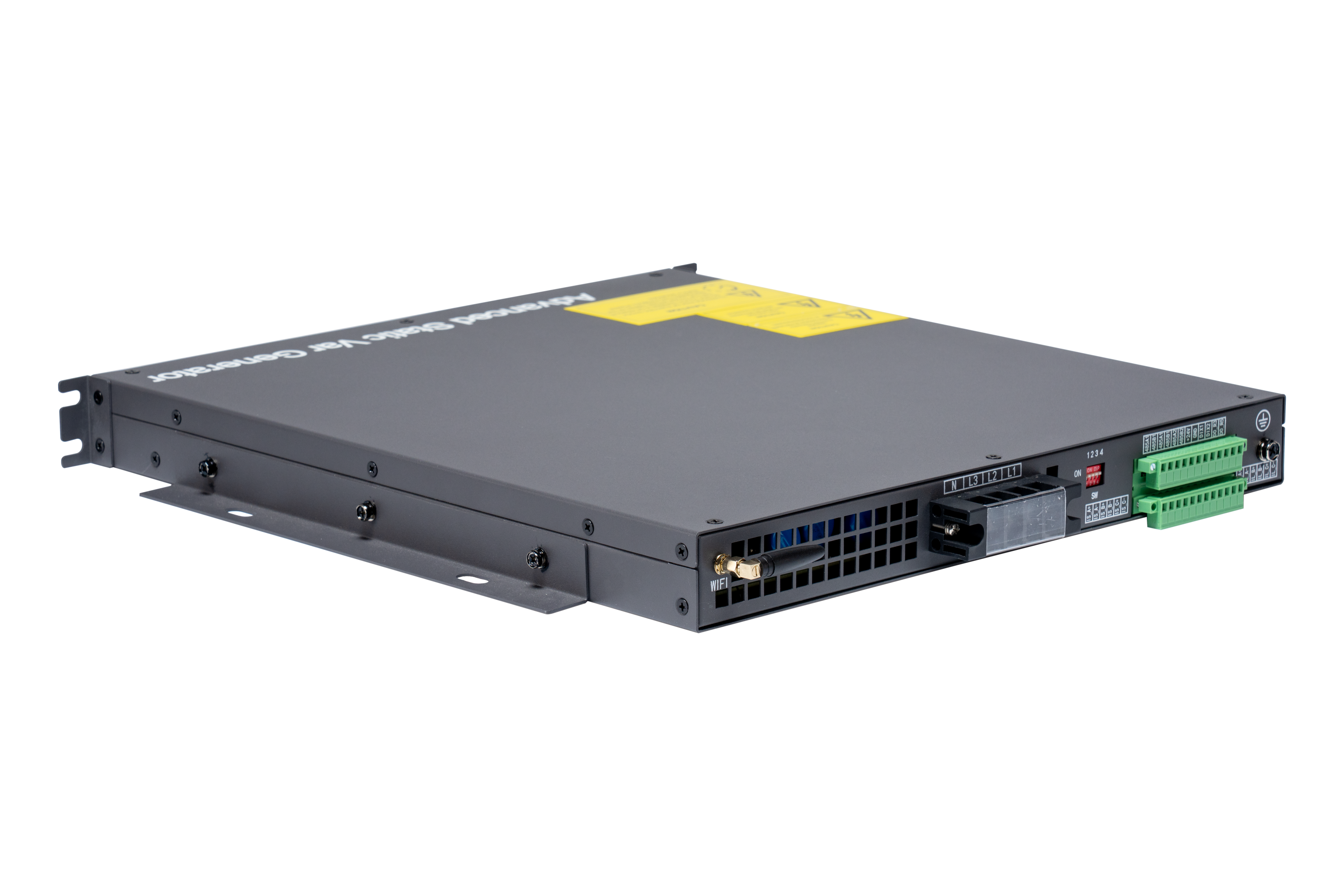

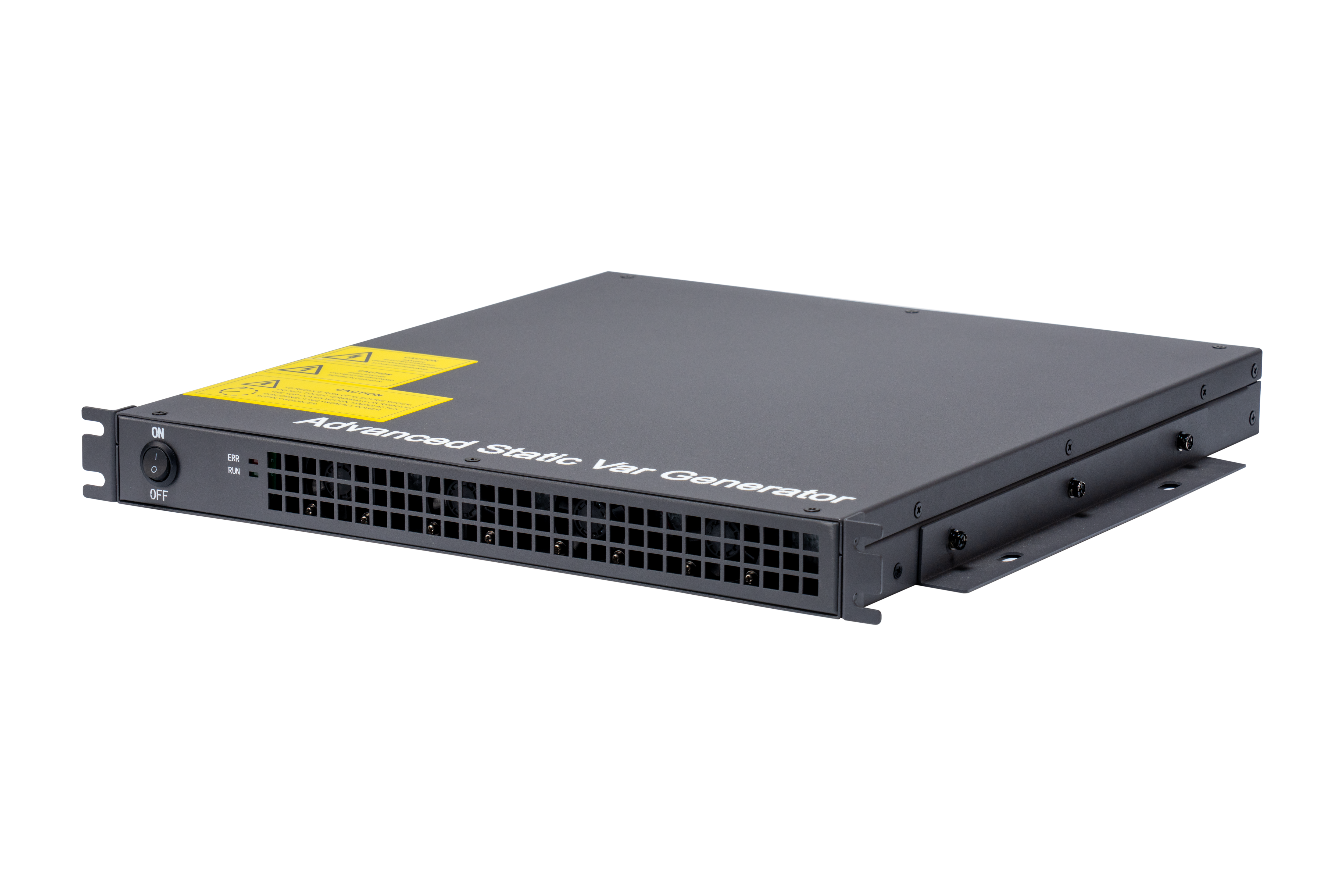

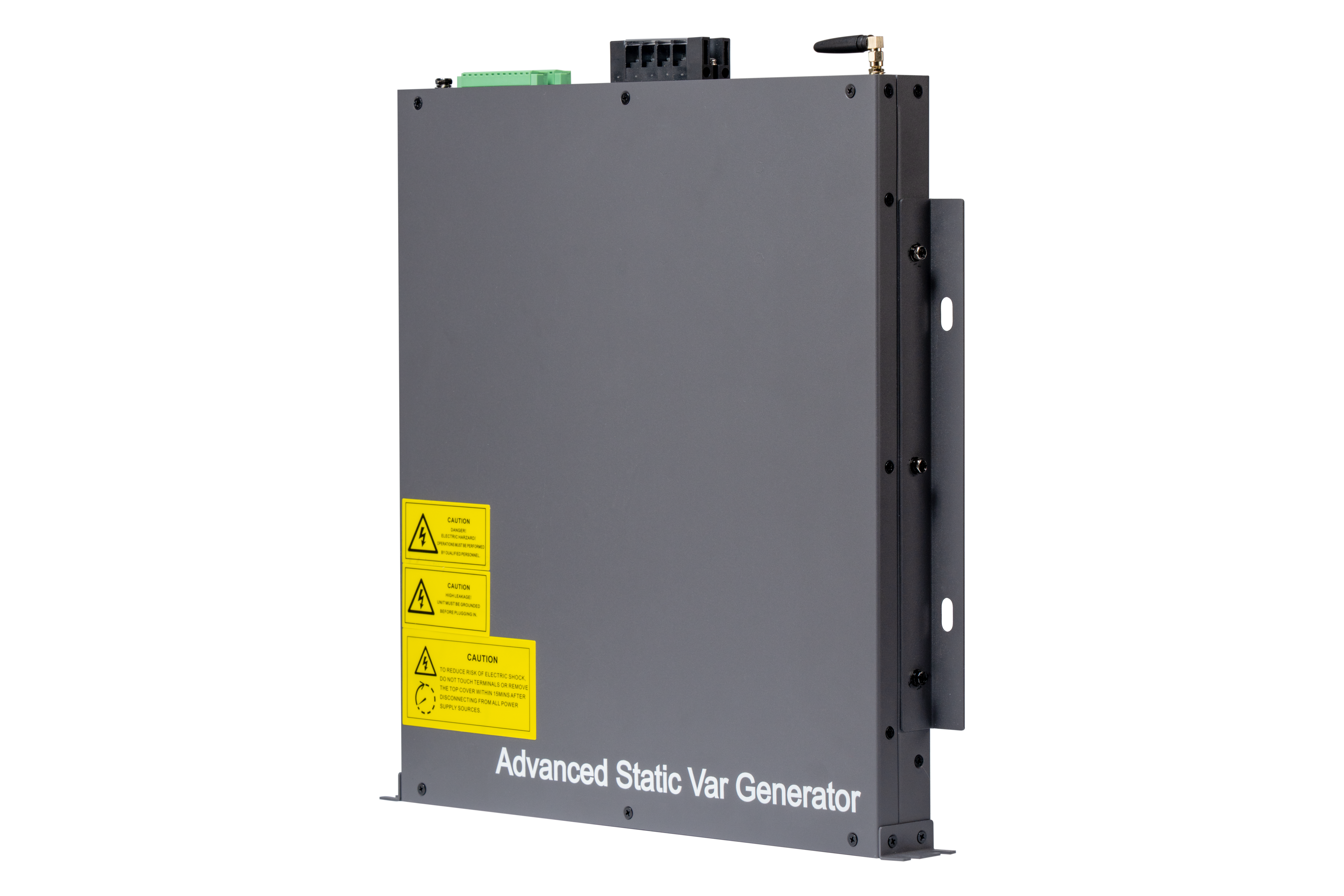

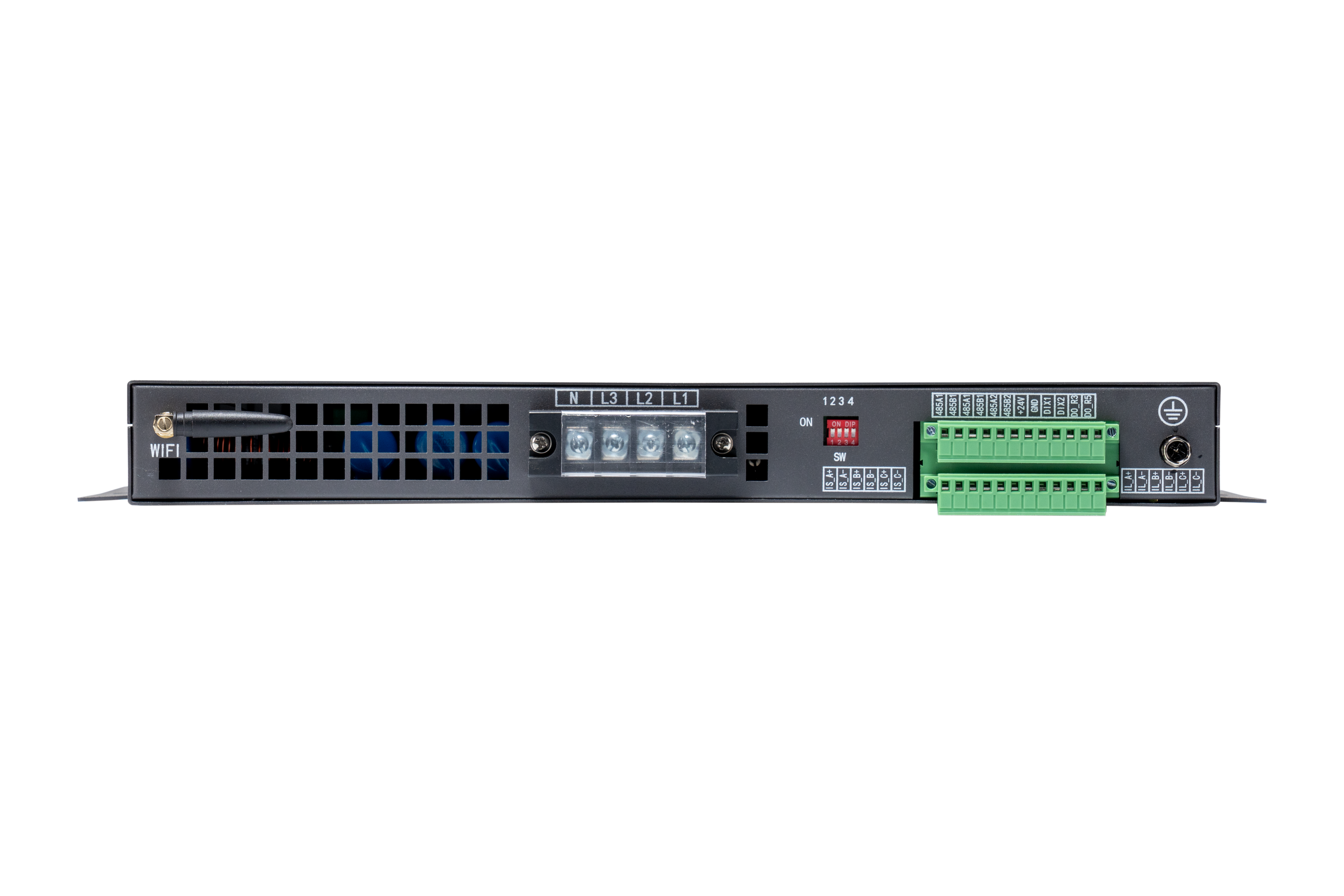

ASVG-1U Product Appearance
|
Module Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage (V) |
Dimensions W*D*H (mm) |
Cooling System |
|
AMS ASVG-1U-0.22-3k/4L-W |
3 |
220 |
460*435*44.5 |
Forced Air Cooling |
|
AMS ASVG-1U-0.4-5k/4L-W |
5 |
400 |
460*435*44.5 |
Forced Air Cooling |
