400V Advanced Static Var Generator (ASVG)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 5kvar,10kvar, 15kvar, 20kvar,35kvar, 50kvar, 75kvar, 100kvar,150kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview
The ASVG is a novel current-type power quality management device. It adjusts the phase and amplitude of the output voltage on the inverter's AC side by real-time monitoring of the load current. This allows it to provide precise, simultaneous compensation for system reactive power, harmonics, and three-phase unbalanced currents. The ASVG is characterized by its strong comprehensive compensation capabilities, fast response time, and high cost-effectiveness, making it a better solution in the field of power quality management.
ASVG 400V Technical Specification
|
ASVG 400V Series |
||||
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature |
-10°C to+50°C (derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC380V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz～63Hz) |
|||
|
Rated Compensation Capacity |
5kvar,10kvar,15kvar,20kvar,35kvar, 50kvar,75kvar,100kvar,150kvar |
|||
|
Power Grid Structure |
3P3W, 3P4W |
|||
|
Numbersin Parallel |
Unlimited |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
16kHz |
|||
|
Function Selection |
Reactive Power, Harmonics, Reactive Power+Harmonics, Harmonics+Reactive Power, Harmonics+Unbalance, Reactive Power+Unbalance, Harmonics+Unbalance+Reactive Power ReactivePower+Unbalance+Harmonics |
|||
|
Full Response Time |
Reactive Power <10ms, Harmonic <40ms |
|||
|
Noise |
≤65dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Over/Undervoltage, Unbalance, Power Supply Fault, Overtemperature,Frequency Anomaly, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet(Rack-Mounted), Top Inlet(Wall-Mounted) |
|||
|
Protection Level |
IP20（IP54 is customizable） |
|||

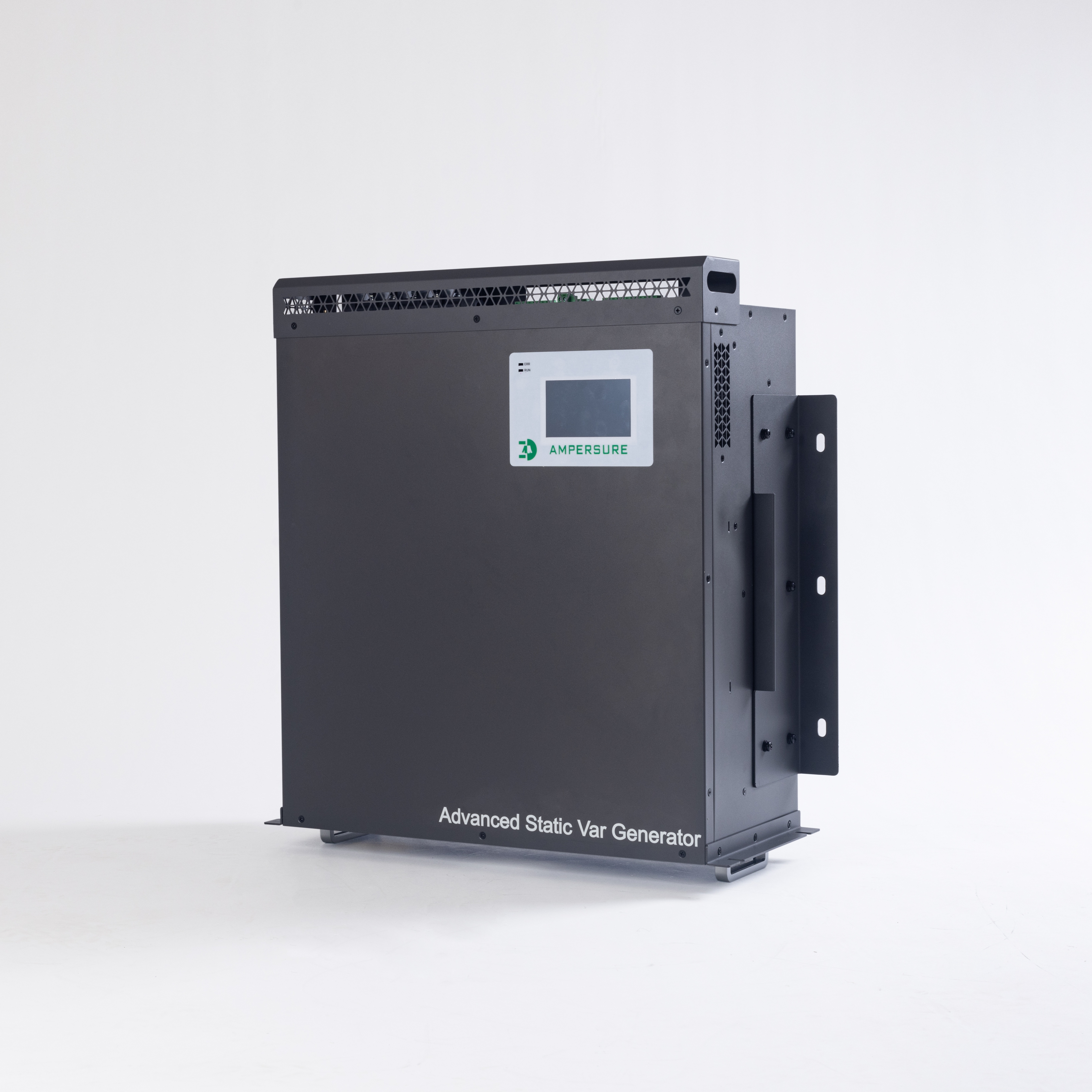

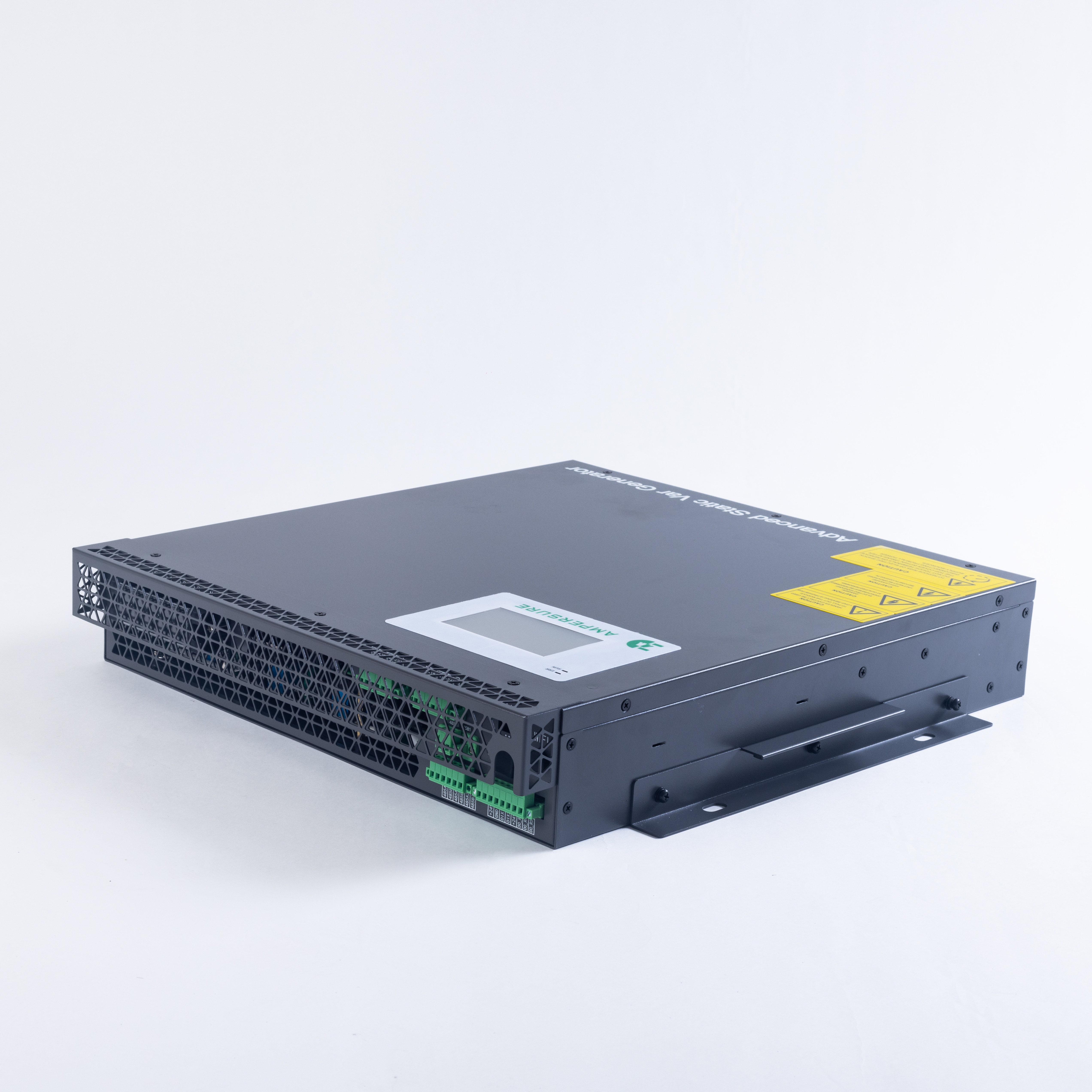

ASVG 400V Product Appearance
|
Module Model |
||||
|
Models |
Compensation Capacity(kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height (mm) |
Cooling System |
|
AMS ASVG-0.4-10k/4L-W |
10 |
400 |
550*460*92.2 |
ForcedAir Cooling |
|
AMS ASVG-0.4-15k/4L-W |
15 |
400 |
550*460*92.2 |
Forced Air Cooling |
|
AMS ASVG-0.4-35k/4L-W |
35 |
400 |
550*460*92.2 |
Forced Air Cooling |
|
AMS ASVG-0.4-50k/4L-W |
50 |
400 |
587*500*193.2 |
Forced Air Cooling |
|
AMS ASVG-0.4-75k/4L-W |
75 |
400 |
624*500*243.2 |
Forced Air Cooling |
|
AMS ASVG-0.4-100k/4L-W |
100 |
400 |
624*500*243.2 |
ForcedAir Cooling |
| AMS ASVG-0.4-150k/4L-W | 150 | 400 | 785*511*252.0 | Forced Air Cooling |
|
Cabinet Model |
||||
|
Models |
Compensation Capacity (kvar) |
System Voltage(V) |
Dimensions Width*Depth*Height(mm) |
Cooling System |
|
AMS ASVG-0.4-200k/4L-C |
200 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMS ASVG-0.4-250k/4L-C |
250 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMSASVG-0.4-300k/4L-C |
300 |
400 |
1250*1000*2200 |
Forced Air Cooling |
|
AMSASVG-0.4-400k/4L-C |
400 |
400 |
1250*1000*2200 |
Forced Air Cooling |
Note: -R(Rack)/ -W(Wall)/ -C(Cabinet)
