400V Low Noise Advanced Static Var Generator(ASVG-LN)
- Rated Frequency: 45Hz-63Hz
- Compensating Current: 3kvar,5kvar, 10kvar
- Reactive Power Compensation Rate : ≥99%
- Machine Efficiency : ≥97%
- Installation: Rack-Mounted, Wall-Mounted
- Overview
- Specification
- Appearance
- Related Products
Product Overview:

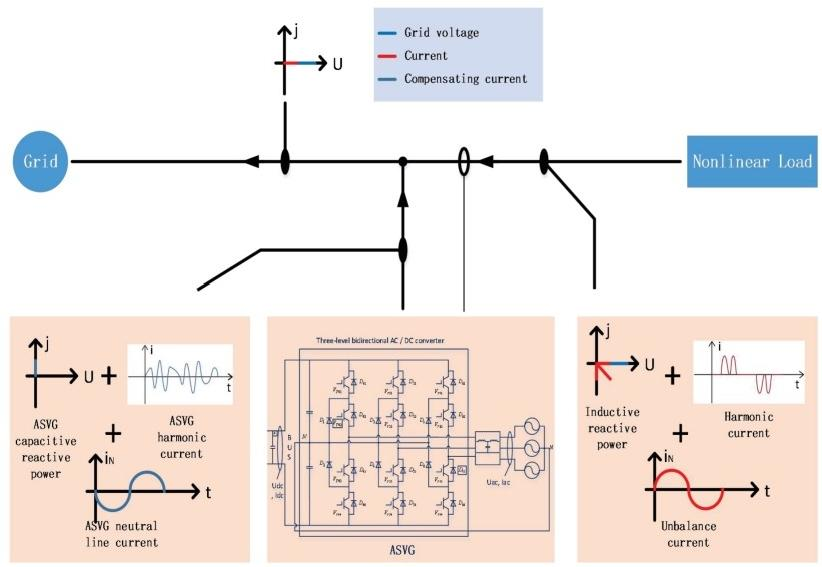

The ASVG-LN employs a low-noise design, connecting the voltage source converter in parallel with the grid through a filter. Its operating principle involves real-time monitoring of the load current and, based on advanced reactive power, harmonic current, and three-phase active power detection and control algorithms, generating corresponding IGBT drive signals to comprehensively compensate for reactive current, harmonic current, and three-phase unbalanced active power. The device operates at noise levels below 45dB and supports a built-in grid-side sampling current transformer (CT), facilitating installation and maintenance.
ASVG-LN 400V Technical Specification
|
Altitude |
＜2000m (derated per GB/T 3859.2 above 2000m) |
|||
|
Ambient Temperature |
-10°C to+50°C (derated above 40℃) |
|||
|
Relative Humidity |
≤ 90%, no condensation on surface at monthly min. temperature of 25°C |
|||
|
Pollution Level |
Below Level III |
|||
|
Operating Voltage |
AC400V (-20%~+20%) |
|||
|
Operating Frequency |
50Hz/60Hz(45Hz～63Hz) |
|||
|
Rated Compensation Capacity |
3kvar,5kvar,10kvar |
|||
|
Power Grid Structure |
3P4W |
|||
|
Numbersin Parallel |
3kvar (parallel connection not supported),5kvar, 10kvar (unlimited) |
|||
|
System Efficiency |
≥97% |
|||
|
Switching Frequency |
30kHz（3kvar） 16kHz（5kvar,10kvar） |
|||
|
Function Selection |
Reactive Power,Harmonic,Reactive Power + Harmonic Compensation, Harmonic + Reactive Power,Harmonic + Unbalance,Reactive Power + Unbalance,Harmonic + Unbalance + Reactive Power,Reactive Power + Unbalance + Harmonic |
|||
|
Full Response Time |
Reactive Power <10ms, Harmonic <40ms |
|||
|
Noise |
3kvar≤38dB,5kvar≤40dB 10kvar≤45dB |
|||
|
Communication |
2*RS485 Communication Ports(Supports WIFI) |
|||
|
Protection |
Overload, Software/Hardware Overcurrent, Over/Undervoltage, Unbalance, Power Supply Fault, Overtemperature,Frequency Anomaly, Short Circuit Protection |
|||
|
Installation |
Rack-Mounted,Wall-Mounted |
|||
|
Entry Line Method |
Rear Inlet(Rack-Mounted), Top Inlet(Wall-Mounted) |
|||
|
Protection Level |
IP20（IP54 is customizable） |
|||
ASVG-LN Product Appearance
|
Models |
Compensation Capacity (kvar) |
System Voltage (V) |
Dimensions W*D*H (mm) |
Cooling System |
|
AMS ASVG-LN-0.4-3k/4L-W |
3 |
400 |
350*540*90.5mm |
Forced Air Cooling |
|
AMS ASVG-LN-0.4-5k/4L-W |
5 |
400 |
350*540*90.5mm |
Forced Air Cooling |
|
AMS ASVG-LN-0.4-10k/4L-W |
10 |
400 |
350*540*90.5mm |
Forced Air Cooling |
